RE:NEW HUNT 5065 Carbon Aero Disc Wheelset

$649 $869.00
25% off

US HQ & Warehouse.

Order by 2pm (MST) for shipping the next business day (if shown in stock).

More details Right

DISC-SPECIFIC AND READY FOR ALL-OUT ATTACK ON THE LOCAL CRIT CIRCUITS OR TT/TRIATHLON COURSES

50/65 Deep | 27 Wide Ext | 20 Wide Int | 1532g

The Purpose

Road races, criteriums, and time trials, are being won by disc-brake bikes with increasing frequency. The shift is happening, and to keep up you'll need an aero wheelset that delivers speed in buckets. Introducing the 5065 Carbon Aero Disc.

The 50/65mm deep rims cut through the air, providing superior aerodynamic performance. The wide 27mm U-shaped profile serves up great handling and reduces drag across multiple wind yaw-angles. The 20mm internal rim bed opens out your tire profile, providing vibration reduction, grip and low rolling-resistance.

The straight pull hubs and bladed spokes reduce weight, add strength and respond instantly to your accelerations. The freehub body on the HUNT Sprint hub features 48 teeth on the ratchet ring, and treble-tooth pawls, providing 7.5° engagement. Perfect for when the hammer goes down and you need an instant response. The LU/LB bearings (which are low-friction sealed on the internal face) further reduce rolling resistance whilst maintaining excellent sealing on the exposed faces.

The Purpose

Road races, criteriums, and time trials, are being won by disc-brake bikes with increasing frequency. The shift is happening, and to keep up you'll need an aero wheelset that delivers speed in buckets. Introducing the 5065 Carbon Aero Disc.Read More

The 50/65mm deep rims cut through the air, providing superior aerodynamic performance. The wide 27mm U-shaped profile serves up great handling and reduces drag across multiple wind yaw-angles. The 20mm internal rim bed opens out your tire profile, providing vibration reduction, grip and low rolling-resistance.

The straight pull hubs and bladed spokes reduce weight, add strength and respond instantly to your accelerations.The freehub body on the HUNT Sprint hub features 48 teeth on the ratchet ring, and treble-tooth pawls, providing 7.5° engagement. Perfect for when the hammer goes down and you need an instant response. The LU/LB bearings (which are low-friction sealed on the internal face) further reduce rolling resistance whilst maintaining excellent sealing on the exposed faces.Read Less

Key Features

The latest addition to our Carbon Aero Disc race, ready for criteriums and time trials/triathlons alike

  • Rims | Features disc-specific, unidirectional T24/30 rims, offering 20mm internal and 27mm external widths, and a 50/65mm u-shape aero profile.
  • Tires | Tubeless-ready for lower weight and rolling resistance, featuring H-Lock technology for easy and secure tubeless installation. Also works excellently with clincher tires and tubes.
  • Hubs | Race Season SPRINT straight-pull hubs, boasting an engagement rate of just 7.5 degrees owing to the leaf-sprung, multi-point pawls and 48 ratchets in the hub shell.
  • Spokes | Pillar PSR reinforced bladed spokes.
  • Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
  • See the full specs here
  • Weight | 1532g

Please note: If you require a 6 bolt adaptor you can purchase separately here

The Experts' View

Cycling Weekly Best Value Award LogoCycling Tips 30Carbon Aero Disc Review LogoCycling Plus Magazine Review LogoBicycling Australia LogoRoad CC Logo

Full Specs

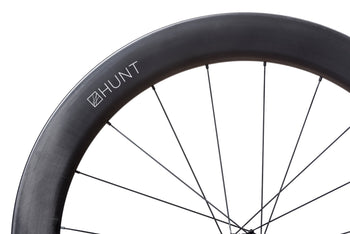

  • Rims

    • Disc-specific tubeless-ready profile
    • H_Lock bead-seat up-kicks, for easy and secure tubeless installation
    • Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
    • 27mm outer and 20mm inner width
    • 50/65mm depth
    • Matt black, finished with matt white contrasting graphics.

  • Spokes

    • 20 front and 24 rear, laced 2-cross.
    • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
    • Straight-pull, for excellent torsional strength and direct power transfer
    • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
    • Patented Pillar Spoke Re-enforcement (butted again just before the spoke head, providing more durability in high stress area).
    • Black stainless finish.

  • Nipples

    • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
    • 16mm length with washer for a strong connection to the spoke added durability.
    • 14 gauge.
    • Black anodized finish.

  • Tires Info

      Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
    • Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
    • Please do not exceed the maximum pressure stated on your tyi.
    • Suitable for tires from 23mm up to 50mm wide.
    • Suitable tubeless road, gravel and CX tires are available from a huge range of companies.

  • Axle Size

    • These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

  • Front Hub

    • We fit the axles you need, just complete the simple form shown after checkout:
    • All existing road/CX disc front axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12mm Bolt Thru
      • 9mm Bolt Thru (uncommon)
    • All axle adapters are also available separately.
    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Polished anodized black finish with laser graphics.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

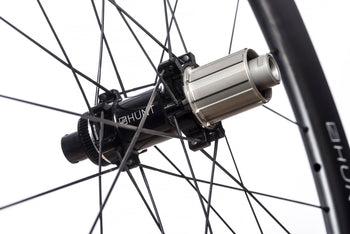

  • Rear Hub

    • We fit the axles you need, just complete the simple form shown after checkout.
    • All existing road/CX disc rear axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12x142 Bolt Thru
      • 12x135 Bolt Thru (uncommon)
      • 10x135 Bolt Thru (uncommon)
    • All axle adapters are also available separately.
    • 7075-T6 heat-treated aluminium alloy freehub body.
    • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
    • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
    • All freehub standards accounted for, including:
      • Shimano/SRAM
      • Campagnolo
      • SRAM XD Driver
      • SRAM XDR Driver
    • Hunt Race Season Disc straight-pull super-light alloy.
    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
    • Polished anodized black finish with laser graphics.

  • Bearings

    • High-grade Japanese EZO bearings.
    • Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.
    • Incredibly fast rolling.

    • Warranty, HUNT Rolling Road Tests & Weight Limits

    A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

    All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 220lbs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 172lbs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

    60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
