HUNT 4 Season Gravel Wheelset

1698g Depth Width ext Width int size
19 mm 29 mm 25 mm 700c

Purpose built for rugged gravel adventure riding, regardless of the weather.

With our proven, double-sealed 4 Season hubset, wide HFR+ (High Fatigue Resistance) heat-treated alloy rims and increased spoke count, this wheelset was built for the roughest road and gravel riding.

Tire size: Optimized for 30 to 45mm tires; work well with 29mm up to 60mm.

$479.20 $599.00
20% off
Limited Stock. Available Now.Items are selected to ship from us in the week stated. Delivery time is 2-6 days*

We will ask for axle info after checkout.

US HQ & Warehouse. Order by 2pm (MST) for next day shipping (If shown in stock, applies to lower 48 states).

Our wheels are in high demand, don't miss out. Order now.

The Purpose _

<h1>ADAPTABILITY</h1> <i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout.</i>

The Purpose _

The 4 Season Gravel has long been a staple in our range, it's a great option for those wanting to hit the path less travelled. This is the only gravel wheel you'll ever need. With a high spoke count and large double-sealed cartridge bearings, you can enjoy fit & forget performance whilst exploring, go bike-packing, rip any trails or CX courses you fancy, and do it all with confidence.

We’ve invested in high-specification rims, hubs and spokes, so you don’t pay a weight penalty for that extra off-road durability.

Full Specs _

Rims
Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Hunt Black Shield tubeless tape fitted. Hunt black tubeless valves included.  Asymmetric rim profile for even spoke tension  Hooked tire bed with H-lock bead-seat up-kicks for easy and secure tubeless installation.  6066-T6 aluminium alloy construction (+34% tensile strength vs 6061-T6). Heat treated for increased surface hardness and fatigue resistance.   700c disc-specific tubeless-ready profile.  Dimensions: 19mm depth, 29mm outer width and 25mm inner width.  Matt black anodized finish with laser etched graphics for low weight and excellent durability.
  • Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Hunt Black Shield tubeless tape fitted. Hunt black tubeless valves included.
  • Asymmetric rim profile for even spoke tension
  • Hooked tire bed with H-lock bead-seat up-kicks for easy and secure tubeless installation.
  • 6066-T6 aluminium alloy construction (+34% tensile strength vs 6061-T6). Heat treated for increased surface hardness and fatigue resistance.
  • 700c disc-specific tubeless-ready profile.
  • Dimensions: 19mm depth, 29mm outer width and 25mm inner width.
  • Matt black anodized finish with laser etched graphics for low weight and excellent durability.
Spokes
28 spokes laced 2-cross front and rear.  J-bend spoke interface allows for easy sourcing and replacement in remote locations.  Patented Pillar Spoke Re-enforcement (PSR) with increased 2.2mm thickness at spoke butted again just before the spoke end, providing more durability in high stress area.          Triple butted 2.0-1.6-2.0 Pillar Spokes (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).  Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.  Black stainless treatment.  All HUNT wheels are built and finished by hand, inclusive of a full quality control inspection card.
  • 28 spokes laced 2-cross front and rear.
  • J-bend spoke interface allows for easy sourcing and replacement in remote locations.
  • Patented Pillar Spoke Re-enforcement (PSR) with increased 2.2mm thickness at spoke butted again just before the spoke end, providing more durability in high stress area.
  • Triple butted 2.0-1.6-2.0 Pillar Spokes (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
  • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
  • Black stainless treatment.
  • All HUNT wheels are built and finished by hand, inclusive of a full quality control inspection card.
Nipples
Brass for anti-corrosion resistance. Square body for external adjustment and hex head for easy internal adjustment/tensioning. 12mm length. 14 gauge. Black anodized finish.
  • Brass for anti-corrosion resistance.
  • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
  • 12mm length.
  • 14 gauge.
  • Black anodized finish.
Front Hub
HUNT GVL QR/12/15 Oversized hub shell body to house larger, more durable bearings Forged and CNC’d 6061-T6 heat treated aluminium alloy body.    7075-T6 aluminium alloy axles.    Polished anodized black finish with laser graphics.    Center-lock disc mount.    Please note: If you require a 6 bolt adaptor you can purchase separately here.
  • HUNT GVL QR/12/15
  • Oversized hub shell body to house larger, more durable bearings
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 
  • 7075-T6 aluminium alloy axles. 
  • Polished anodized black finish with laser graphics. 
  • Center-lock disc mount. 
  • Please note: If you require a 6 bolt adaptor you can purchase separately here.
Rear Hub
HUNT H_Ratchet 36T SGL H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.  Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance.  Highly durable 36T ratchet drive system for a fast 10° engagement. Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles.  Polished anodized black finish with laser graphics.  All axle, freehub and end cap standards available. Please note: If you require a 6 bolt adaptor you can purchase separately here.
  • HUNT H_Ratchet 36T SGL
  • H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. 
  • Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance.
  • Highly durable 36T ratchet drive system for a fast 10° engagement.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles. 
  • Polished anodized black finish with laser graphics. 
  • All axle, freehub and end cap standards available.
  • Please note: If you require a 6 bolt adaptor you can purchase separately here.
Bearings
Super smooth precision bearings with waterproof grease specially selected to withstand the worst weather.  Sealed cartridge replaceable units.   Dual full-contact seals.
  • Super smooth precision bearings with waterproof grease specially selected to withstand the worst weather.
  • Sealed cartridge replaceable units.
  • Dual full-contact seals.
Tires Info
HUNT recommends a 35-50mm tire for best performance, tire widths between 29mm and 60mm are also safe to use.   Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
  • HUNT recommends a 35-50mm tire for best performance, tire widths between 29mm and 60mm are also safe to use.
  • Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
Axle Sizes
These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm.  *Shimano Microspline and Campagnolo CN3W is only available in 12x142mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm.

*Shimano Microspline and Campagnolo CN3W is only available in 12x142mm

If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

Rims

A strong and lightweight 6066-T6 (+34% tensile strength vs 6061-T6) heat-treated alloy rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is disc specific which allows higher strength-to-weight as no reinforcement is required for a braking surface. The wide rim at 29mm (25mm internal) which creates a great tire profile with wider 35mm-50mm tires

Rim bed

H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tires. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.

Freehub Body

Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we've developed the H_CERAMIK coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies

Bearings

The heart of any wheel. Investing in them makes huge sense. We use high-grade precision sealed cartridge bearings with proprietary waterproof grease specially selected for even the worst weather.

Nipples

To accompany these high-end spokes we selected brass nipples for our Hunt 4 Season wheels. Brass is strong and corrosion resistant plus it has self-lubricating properties to prevent issues that can arise from grit salt on the winter roads corroding the fine threads in alloy nipples. As well as the standard square body we chose nipples with a hex head so you can achieve precise tensioning.

We chose Pillar triple butted spokes for their lower weight and greater degree of elasticity, which improves tension consistency and resists fatigue. The PSR J-bend spokes feature increased2.2mmthickness at the spoke head, providing more material in this high stress area.

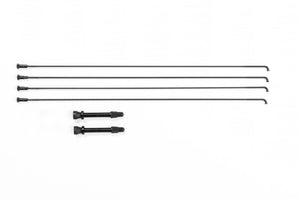

What's in the box _

  • Hunt Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed
  • 45mm Tubeless Valves
  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

<h1>In the Box</h1><ul><li>HUNT Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Spare spokes with nipples & washers.</li><li>Tubeless Valves</li><li>Quality control card signed by your wheel builder</li></ul>

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 276 lb (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 242 lb then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires minimum 29mm at max 80psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
