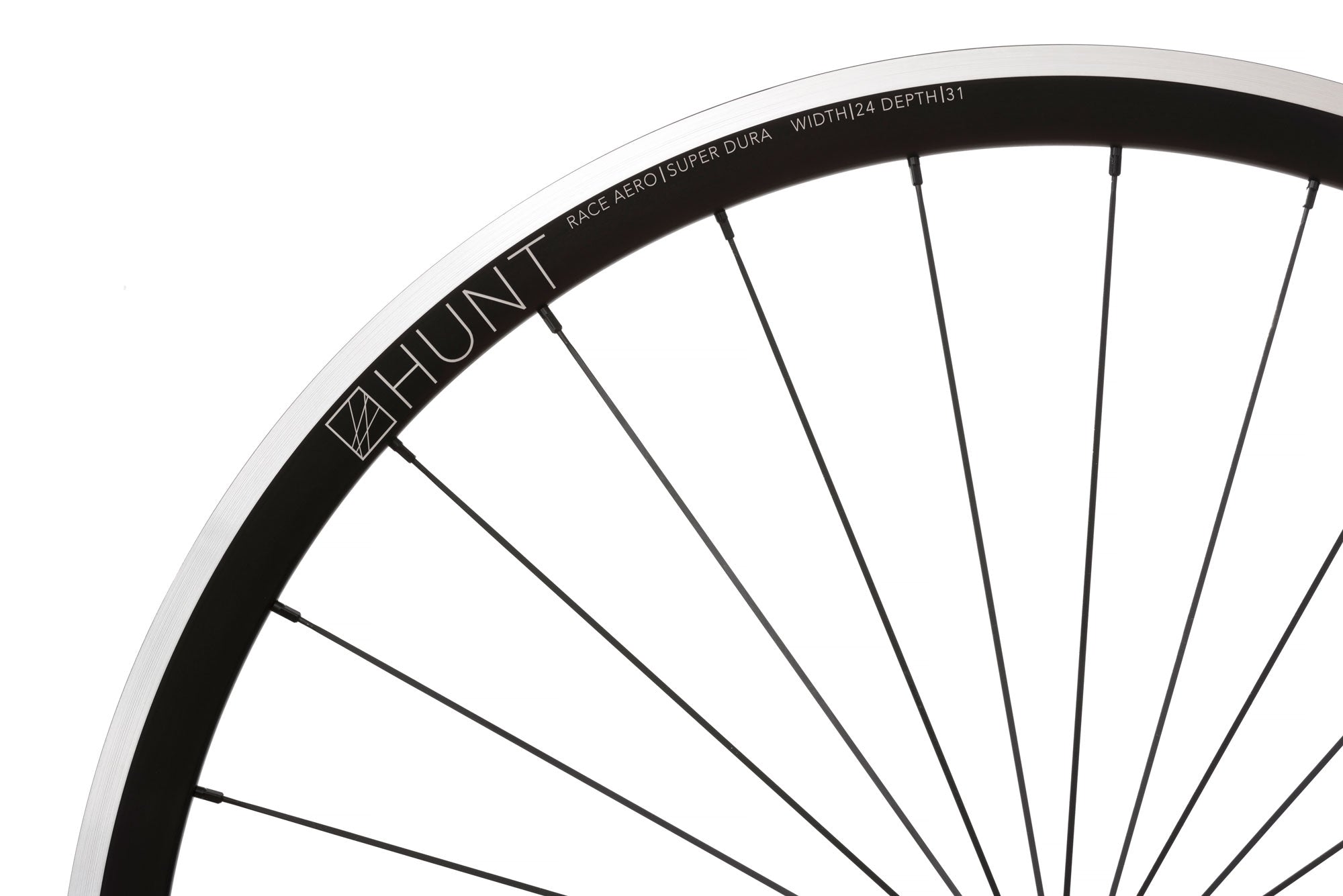

<h1>Rims</h1><i>The Race Aero SuperDura has a 24mm wide and 31mm deep rounded profile rim from Niobium enriched alloy. Niobium alloy is a proprietary material and uses an advanced T10 heat-treatment process. The process delivers outstanding weight, stiffness and durability meaning rims can be wider for 25 and 28mm tyres, deeper for better aero performance, light for excellent climbing and acceleration and capably handle the increased loads and torque that more powerful riders can dish out.</i>

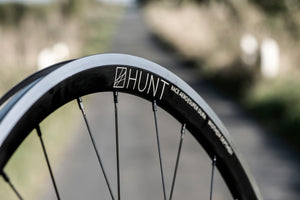

<h1>Rims</h1><i>The wheelset utilises our strongest rim material in the tried and tested profile from our Race Aero Wide wheels. We've added even more width (24mm external and 19 internal) and depth (31mm) for extra grip, comfort, low aero drag and low rolling resistance advantage. It's also important to note that widening the rim increases the air volume for any given tyre size thus creating better shock absorption which is especially useful for higher loading/more powerful riders.</i>

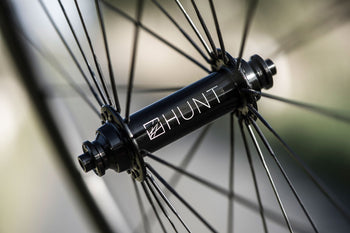

<h1>Hubs</h1><i>The hubs on the Race Aero SuperDura benefit from larger 12mm front and 15mm rear axles. This combined with them being machined from hard and strong 7075-T6 heat treated alloy means that they easily withstand the higher loads created by larger riders. Plus the cold forged then CNC machined hub shell means the metal grain structure is ideally aligned to handle the high spoke loads, the work hardening from the cold forging also adds extra strength.</i>
<h1>Freehub Body</h1><i>Featuring a 3 multi-point pawls with 3 teeth each and a 48 tooth ratchet ring results in an impressively low 7.5 degree engagement angle and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which engage quicker. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>Rim Bed</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tires. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures or riding off-road.</i>
RE:NEW HUNT Race Aero SuperDura Wheelset
<h1>Skewers</h1><i>The little details matter, the Hunt Race Aero SuperDura quick-release skewers use brass for the cam which has self lubricating properties and we have even have upgraded to stainless steel springs so they don’t rust. The quick-releases are designed and tested to exceed 1000kg of tensile breaking force.</i>

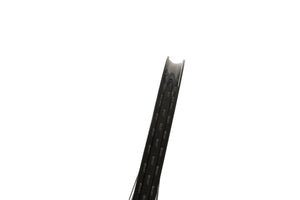

<h1>Rim Profile</h1>
<h1>Nipples</h1><i>Lightweight alloy nipples are the right decision to make for a high-performance wheelset where weight matters, plus we use longer 14mm nipples to provide great strength and a long thread connection with the spokes. The nipples also feature square bodies with a hex head (hex spoke key provided with the wheels) to allow ease of tensioning and maintenance.</i>
<h1>Bearings</h1><i>The heart of any wheel. Investing in them makes huge sense which is why we chose TPI. Their high-grade precision sealed cartridge bearings are trusted by many of the world's leading engineering, cycling and automotive companies. The bearings we specced in the SuperDura wheels are upgraded to LU/LB seals which are low-friction sealed on the internal bearing face, to reduce rolling resistance and increase your speed, whilst providing maximum double contact sealing on the exposed faces.</i>
<h1>Spokes</h1><i>28 front and 32 at the rear, vastly reduces the fatigue on each spoke, and each spoke hole at the hub and rim, as the rider load is spread over many more spokes. We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the head providing more material in this high stress area.</i>
<h1>Tires</h1><i>At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option. Of course, all of our tubeless-ready wheels are designed to work perfectly with clincher tires and inner tubes too.</i>
35% off
<h1>Rims</h1><i>The Race Aero SuperDura has a 24mm wide and 31mm deep rounded profile rim from Niobium enriched alloy. Niobium alloy is a proprietary material and uses an advanced T10 heat-treatment process. The process delivers outstanding weight, stiffness and durability meaning rims can be wider for 25 and 28mm tyres, deeper for better aero performance, light for excellent climbing and acceleration and capably handle the increased loads and torque that more powerful riders can dish out.</i>
<h1>Rims</h1><i>The wheelset utilises our strongest rim material in the tried and tested profile from our Race Aero Wide wheels. We've added even more width (24mm external and 19 internal) and depth (31mm) for extra grip, comfort, low aero drag and low rolling resistance advantage. It's also important to note that widening the rim increases the air volume for any given tyre size thus creating better shock absorption which is especially useful for higher loading/more powerful riders.</i>
<h1>Hubs</h1><i>The hubs on the Race Aero SuperDura benefit from larger 12mm front and 15mm rear axles. This combined with them being machined from hard and strong 7075-T6 heat treated alloy means that they easily withstand the higher loads created by larger riders. Plus the cold forged then CNC machined hub shell means the metal grain structure is ideally aligned to handle the high spoke loads, the work hardening from the cold forging also adds extra strength.</i>
<h1>Freehub Body</h1><i>Featuring a 3 multi-point pawls with 3 teeth each and a 48 tooth ratchet ring results in an impressively low 7.5 degree engagement angle and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which engage quicker. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>Rim Bed</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tires. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures or riding off-road.</i>
<h1>Skewers</h1><i>The little details matter, the Hunt Race Aero SuperDura quick-release skewers use brass for the cam which has self lubricating properties and we have even have upgraded to stainless steel springs so they don’t rust. The quick-releases are designed and tested to exceed 1000kg of tensile breaking force.</i>
<h1>Rim Profile</h1>
<h1>Nipples</h1><i>Lightweight alloy nipples are the right decision to make for a high-performance wheelset where weight matters, plus we use longer 14mm nipples to provide great strength and a long thread connection with the spokes. The nipples also feature square bodies with a hex head (hex spoke key provided with the wheels) to allow ease of tensioning and maintenance.</i>
<h1>Bearings</h1><i>The heart of any wheel. Investing in them makes huge sense which is why we chose TPI. Their high-grade precision sealed cartridge bearings are trusted by many of the world's leading engineering, cycling and automotive companies. The bearings we specced in the SuperDura wheels are upgraded to LU/LB seals which are low-friction sealed on the internal bearing face, to reduce rolling resistance and increase your speed, whilst providing maximum double contact sealing on the exposed faces.</i>
<h1>Spokes</h1><i>28 front and 32 at the rear, vastly reduces the fatigue on each spoke, and each spoke hole at the hub and rim, as the rider load is spread over many more spokes. We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the head providing more material in this high stress area.</i>
<h1>Tires</h1><i>At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option. Of course, all of our tubeless-ready wheels are designed to work perfectly with clincher tires and inner tubes too.</i>

RE:NEW HUNT Race Aero SuperDura Wheelset

$419 $649.00
35% off
Wheels are scheduled to ship from us in the week stated. Delivery time is 2-6 days*

US HQ & Warehouse.

Order by 2pm (MST) for shipping the next business day (if shown in stock).

More details Right

THE GO-TO FOR POWERFUL RIDERS REQUIRING STIFFNESS AND DURABILITY. INCREDIBLE PERFORMANCE WITH A SYSTEM WEIGHT LIMIT OF 319LBS

31 Deep | 24 Wide Ext | 19 Wide Int | 1595g

The Purpose

The race wheelset for with a weight limit of 319lbs, inspired by and developed alongside Hunt OpenDev team member (and ex-pro Leicester Tigers rugby player) Will Johnson. Speed and strength in equal measure. Read More

Will has been a member of our Hunt OpenDev team since we launched it in March 2016. Will and a friend, also a professional rugby player (who weighed 275lbs), both bought 4Season Dura wheels (max system weight 319lbs) from us in January 2016 as winter wheelsets. Then they both rode the Paris-Roubaix Sportive on them, that was a nervous day for us here! The two of them successfully completed Roubaix on the 4Season Dura wheels but fancied something with more of a performance focus and some weight-saving over the low profile/round-spoked/brass-nippled 4Season Duras.

So with Will's input we designed the new Race Aero SuperDura wheels. They feature a deep and wide rim combined with bladed aero spokes for extra wind-cheating advantage. The high-spec components build into a sub-1600g wheelset, and yet high (28/32) spoke count and seriously strong rim material result in wheelset that can truly handle the power of larger riders. Read Less

The Purpose

The race wheelset for with a weight limit of 319lbs, inspired by and developed alongside Hunt OpenDev team member (and ex-pro Leicester Tigers rugby player) Will Johnson. Speed and strength in equal measure. Read More

Will has been a member of our Hunt OpenDev team since we launched it in March 2016. Will and a friend, also a professional rugby player (who weighed 275lbs), both bought 4Season Dura wheels (max system weight 319lbs) from us in January 2016 as winter wheelsets. Then they both rode the Paris-Roubaix Sportive on them, that was a nervous day for us here! The two of them successfully completed Roubaix on the 4Season Dura wheels but fancied something with more of a performance focus and some weight-saving over the low profile/round-spoked/brass-nippled 4Season Duras.

So with Will's input we designed the new Race Aero SuperDura wheels. They feature a deep and wide rim combined with bladed aero spokes for extra wind-cheating advantage. The high-spec components build into a sub-1600g wheelset, and yet high (28/32) spoke count and seriously strong rim material result in wheelset that can truly handle the power of larger riders. Read Less

Key Features

For the Super Strong

  • Rims | Niobium aluminium alloy-T10 Heat treated. 31mm deep. The broad 19mm internal and 24mm external rim width creates an excellent tire profile for wide road tires and cross tires up to 45c. H-lock bead-seat for easy and secure tubeless installation.
  • Tires | Designed with a wide 19mm rim bed to create a wider tire profile. Great with 700x23mm tires but ideal for 25, 28 and cross tires up to 45c. Also work excellently with clincher tires and tubes.
  • Hubs | 4Season Dura 6061-T6, large 12mm front and 15mm rear axles, large double-sealed main bearings, extra hub cap sealing, 7075-T6 axle. 48 teeth with 3x3 multi-point pawls and strong individual leaf springs for each pawl resulting in just 7.5 deg engagement.
  • QR | Hunt Race Season super-light with heat-treated alloy/brass cam plate actuation and stainless steel springs.
  • Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
  • Weight | 1595g
  • See the full specs here

The Experts' View

Bikeradar Logo

Full Specs

  • Rims

    • Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Hunt Black Shield tubeless rim tape fitted.
    • H-lock bead-seat up-kicks for easy and secure tubeless installation.
    • Niobium – T10 heat-treated aluminium alloy.
    • 24mm outer and 19mm inner width ideal for 23-45mm tire widths.
    • 31mm deep rounded aero section.
    • Precision machined rim brake track.
    • Matt black anodized finish with matt white heated decals for excellent durability.

  • Spokes

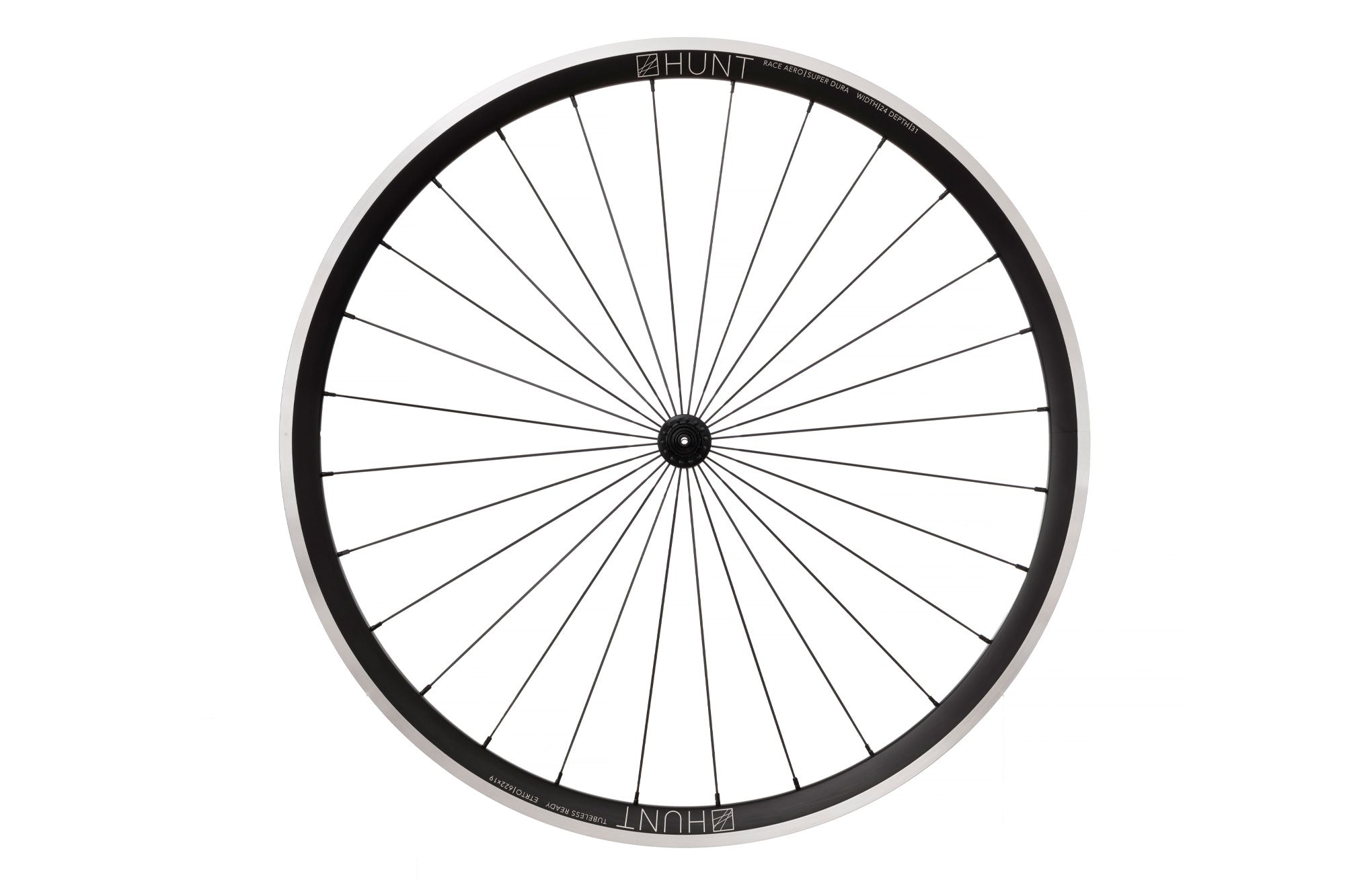

    • Front: 28 spokes laced radially - Aero triple-butted profile
      • Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.

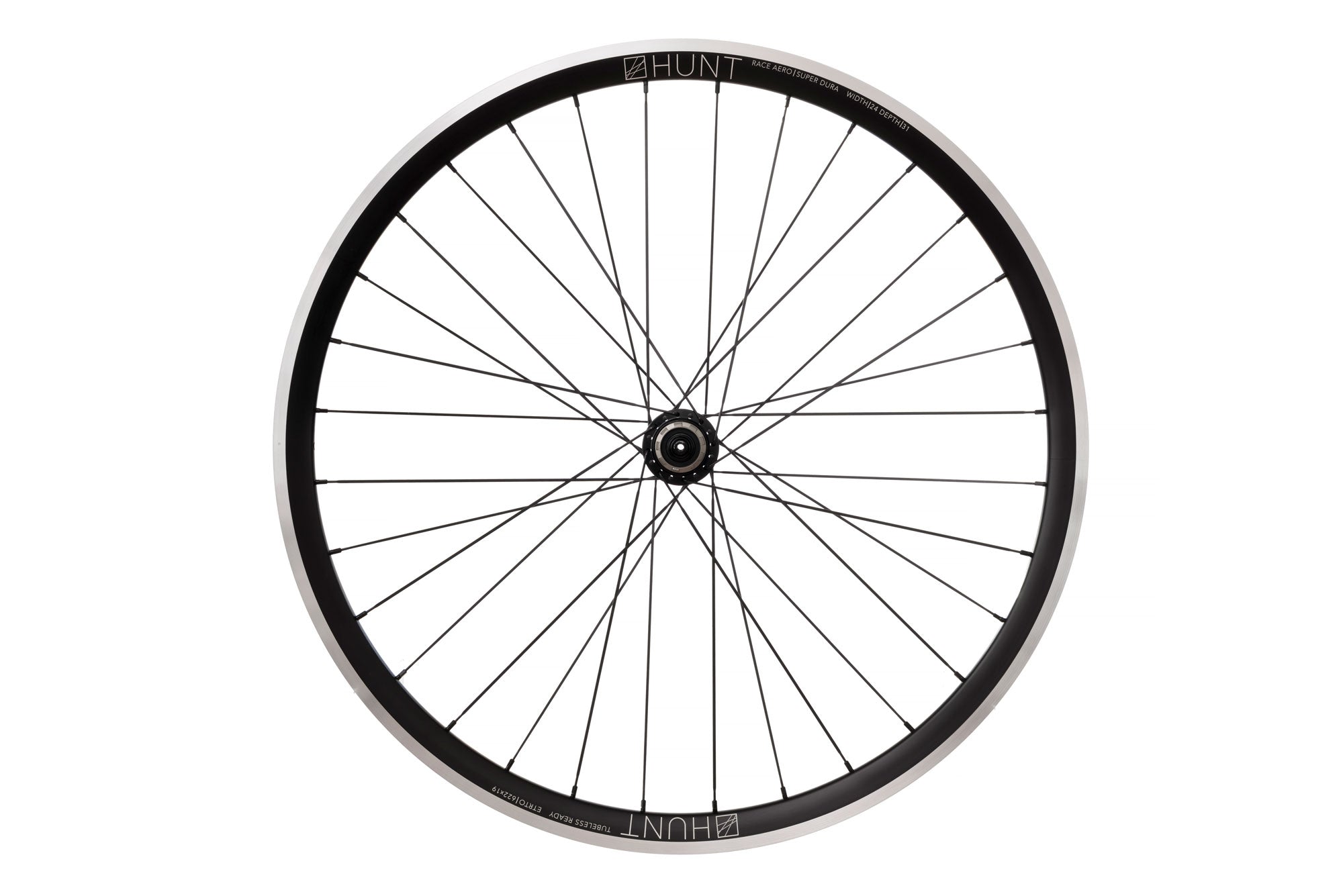

    • Rear: 32 spokes laced 3 cross.
      • Asymmetric spoke gauges on rear wheel creates a more stable wheel build.
      • Drive side - butted 2.0-2.5/1.05-2.0 then PSR section is 2.2.
      • Non-drive side - butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
    • J-Bend for ease of sourcing replacements and flexibility.
    • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
    • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
    • Black stainless treatment

    • Nipples

      • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
      • 14mm length for a strong connection to the spoke.
      • 14 gauge
      • Black anodized finish

    • Tires Info

      • Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100 psi is more than enough for any rider on road.
      • The maximum pressure of your tire may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tire
      • Suitable for tires from 23mm up to 50mm wide.
      • Suitable tubeless road, gravel and CX tires are available from a huge range of companies.

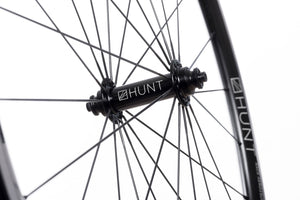

    • Front Hub

      • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
      • 7075-T6 aluminium alloy axles.
      • Circular machined dropout interface steps for added stiffness
      • Polished anodized black finish with laser graphics.

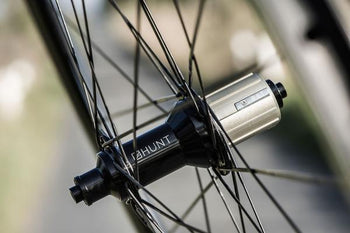

    • Rear Hub

      • 7075-T6 heat-treated aluminium alloy freehub body.
      • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
      • Freehub mechanism - 3x3 pawls with super fast 7.5 degree engagement, 3 multi-point pawls with 3 teeth each, individual leaf-pawl springs are strong in poor winter conditions, 48 tooth ratchet ring. 9 point engagement shares high torque loads increasing wear life.
      • All freehub standards accounted for, including:
        • Shimano/SRAM
        • Campagnolo
        • SRAM XD Driver
        • SRAM XDR Driver
      • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
      • 7075-T6 aluminium alloy axles, 12mm front, 15mm rear.
      • Polished anodized black finish with laser graphics.

    • Bearings

      • High-grade by TPI.
      • Sealed cartridge replaceable units.
      • Upgraded to LU/LB seals; low-friction sealed on the internal bearing face; double contact sealing on the exposed faces.

    • Quick-Releases

      • Hunt Super-light Race Season design, only 33g front and 37g rear.
      • 7075-T6 heat-treated alloy lever, head and nut.
      • Brass cam plate actuation.
      • 1000kgf tested high-strength cro-moly spindles.
      • Corrosion resistant stainless steel springs.
      • Polished anodized black finish with laser graphics.

      • Warranty, HUNT Rolling Road Tests & Weight Limits

      A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

      All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 319lbs (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 273lbs then an experienced bike mechanic should check the wheel regularly and it is advisable to use minimum 28c tires at max 100psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

      60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

      Tubeless tire Options

      We can supply tubeless tires (including sealant) with your wheels, they are also designed to work excellently with clincher tires and tubes.

      These are only some of the options you can have fitted on your wheels. To see the full range, click here

      Schwalbe Pro One Tubeless Tires

      Schwalbe Pro One Tubeless Tires- 25, 28 or 30mm

      The Schwalbe Tubeless road tires consistently win plaudits from journalists and customers alike. We have been testing them for a long time and have been very impressed. The One Pro's are Schwalbe's top of the range tires and feature their triple compound tread so you get extremely low rolling-resistance combined with excellent grip and durability.
