Re:New HUNT 30 Carbon Aero Disc Wheelset

$649 $999.00
35% off
Limited Stock. Available Now.
Wheels are scheduled to ship from us in the week stated. Delivery time is 2-6 days*

US HQ & Warehouse.

Order by 2pm (MST) for shipping the next business day (if shown in stock).

More details Right

Aero, super wide, incredibly lightweight. Designed specifically for disc braking from the ground up!

30 DEEP | 27 WIDE EXT | 21 WIDE INT | 1374G

The Purpose

Look no further for a do-it-all carbon disc-brake wheelset than the 30 Carbon Aero Disc. Ultimate climbing performance, and incredibly capable on rolling terrain. The super-wide 27mm rim provides superior aerodynamic performance. The U-profile serves up great handling and reduces drag across multiple wind yaw-angles. The extra-wide 21mm internal rim bed opens out your tire profile providing exceptional vibration reduction, grip and low rolling-resistance. Stretch the gaps and burn the legs of your riding compatriots. Read More

The straight pull hubs and bladed spokes reduce weight, add strength and respond instantly to your accelerations. The freehub body on the HUNT Sprint hub features 48 teeth on the ratchet ring, and treble-tooth pawls, providing incredible 7.5 degree engagement. Perfect for when the hammer goes down and you need an instant response.

The latest breed of tubeless tires give-up nothing in weight to their clincher counterparts, as well as removing the tube for weight saving and reducing rolling resistance, so tubeless-ready was essential. Go on, scare the climbers with your discs! Read Less

The Purpose

Look no further for a do-it-all carbon disc-brake wheelset than the 30 Carbon Aero Disc. Ultimate climbing performance, and incredibly capable on rolling terrain. The super-wide 27mm rim provides superior aerodynamic performance. The U-profile serves up great handling and reduces drag across multiple wind yaw-angles. The extra-wide 21mm internal rim bed opens out your tire profile providing exceptional vibration reduction, grip and low rolling-resistance. Stretch the gaps and burn the legs of your riding compatriots. Read More

The straight pull hubs and bladed spokes reduce weight, add strength and respond instantly to your accelerations. The freehub body on the HUNT Sprint hub features 48 teeth on the ratchet ring, and treble-tooth pawls, providing incredible 7.5 degree engagement. Perfect for when the hammer goes down and you need an instant response.

The latest breed of tubeless tires give-up nothing in weight to their clincher counterparts, as well as removing the tube for weight saving and reducing rolling resistance, so tubeless-ready was essential. Go on, scare the climbers with your discs! Read Less

Key Features

The Ultimate Road Disc Wheelset

  • Rims | 700c Toray T700/T800 carbon-fibre. Unidirectional sidewalls with 3K weave bed and spoke areas, the wide aero profile delivers excellent handling and speed.
  • Tires | Tubeless-ready for lower weight and rolling resistance. Also work excellently with clincher tires and tubes.
  • Hubs | Race Season SPRINT straight-pull hubs, boasting an engagement rate of just 7.5° owing to the leaf-sprung, multi-point pawls and 48 ratchets in the hub shell. Center-lock brake mount. Please note: If you require a 6 bolt adaptor you can purchase separately here
  • Spokes | Black Pillar PSR EXTRA Spokes with increased wear and corrosion resistance.
  • Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change. Click here to see all axle sizes.
  • Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
  • Included | Tubeless tape & valves, spare spokes, axle adapters (please fill in the simple form after checkout to select your required size).

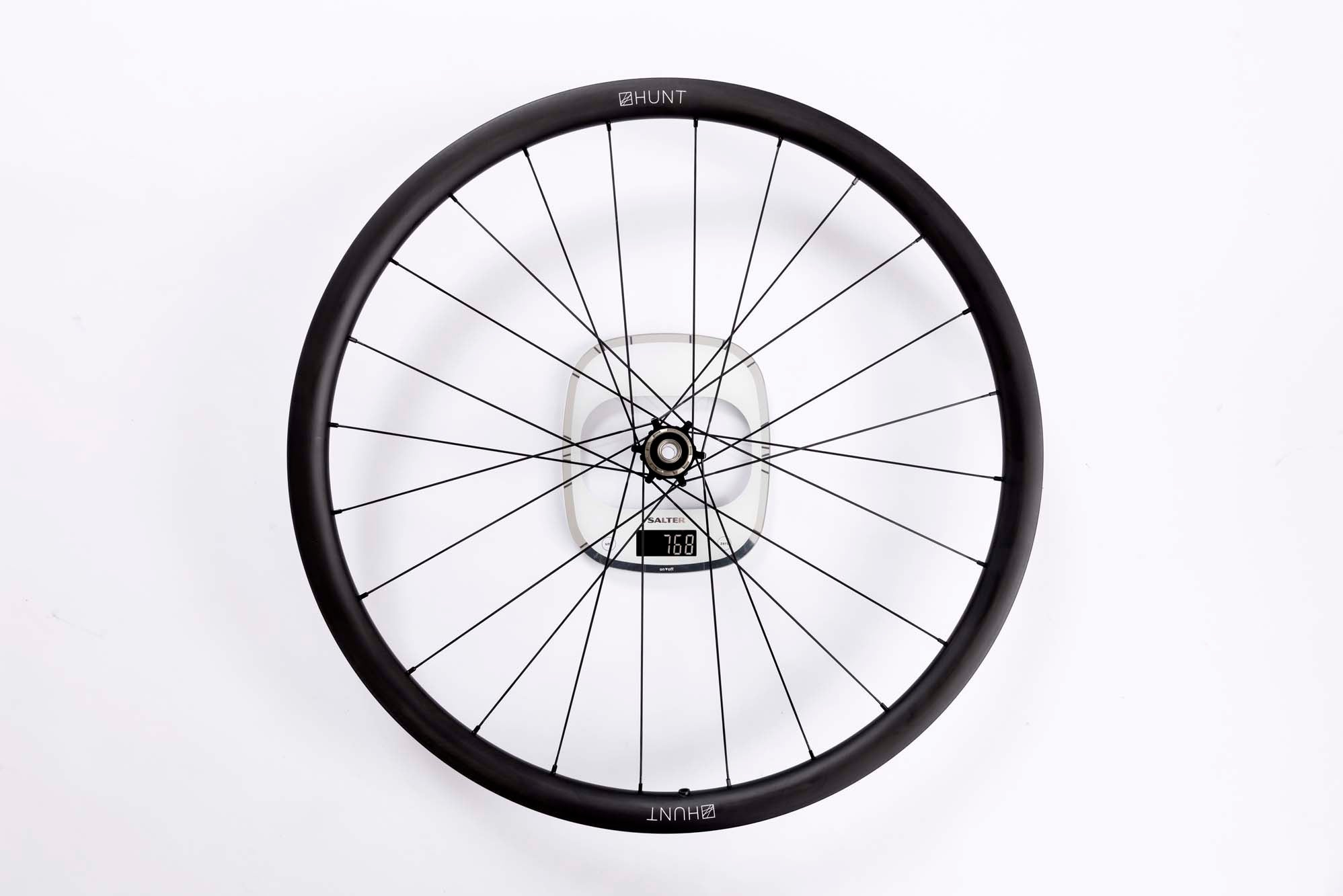

  • Weight | 1374g
  • See the full specs here

The Experts' View

Cycling Tips 30Carbon Aero Disc Review LogoRoad CC LogoCycling Plus Magazine Review LogoBicycling Australia Logo

Full Specs

  • Rims

    • Disc-specific tubeless-ready profile
    • H-lock bead-seat up-kicks for easy and secure tubeless installation
    • Toray T700/T800 carbon-fibre. Unidirectional sidewalls with 3K weave bed and spoke areas
    • 27mm outer and 21mm inner width ideal for 23-50mm tire widths
    • 30mm depth
    • Matt black base finished with matt white contrasting graphics.

  • Spokes

    • 20 front and 24 rear laced 2 cross.
    • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
    • Straight-pull for excellent torsional strength and direct power transfer
    • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
    • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
    • Black stainless or Oil-Slick Ti-Nitride treatment

  • Nipples

    • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
    • 16mm length with washer for a strong connection to the spoke added durability.
    • 14 gauge.
    • Black anodized finish.

  • Tires Info

    • Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. 100 psi is more than enough for any rider on road. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
    • Maximum tire pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
    • Please do not exceed the maximum pressure stated on your tire.
    • Suitable for tires from 23mm up to 50mm wide.
    • Suitable tubeless road, gravel and CX tires are available from a huge range of companies including Schwalbe, Hutchinson, Panaracer, Maxxis and many more. Schwalbe Pro One 25mm tire weighs just 255g, is tubeless ready and is Schwalbe's class leading clincher racing tire.

  • Axle Sizes

    These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:

    • Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
    • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

    If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

  • Front Hub

    • Forged and CNC’d 6061-T6 heat treated aluminum alloy body.
    • 7075-T6 aluminum alloy axles.
    • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
    • Polished anodized black finish with laser graphics.
    • Hunt Race Season Disc straight-pull super-light alloy.

  • Rear Hub

    • 7075-T6 heat-treated aluminum alloy freehub body.
    • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
    • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
    • All freehub standards accounted for.
      • Hunt Race Season Disc straight-pull super-light alloy.
      • Forged and CNC’d 6061-T6 heat treated aluminum alloy body.
      • 7075-T6 aluminum alloy axles.
      • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
      • Polished anodized black finish with laser graphics.

  • Bearings

    • High-grade Japanese EZO bearings.
    • Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.
    • Incredibly fast rolling.

    • Warranty, HUNT Rolling Road Tests & Weight Limits

    A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

    All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 273lbs (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 253lbs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

    60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

    Reviews

    Bike Magazine and Website Experts' Views

    Cycling Tips 30Carbon Aero Disc Review Logo

    9/10 REVIEW

    "It’s hard to find a road disc wheelset that can compete with Hunt Bike Wheels 30Carbon Aero Disc wheelset on every front. This is one upgrade that road disc bike owners cannot afford to overlook."
    Roadcc Logo

    4.5/5 REVIEW

    "A lightweight, stiff and durable wheelset that'll work brilliantly across a range of road riding disciplines"

    4/5 HIGHLY COMMENDED AWARD

    "It's deep enough to provide an aero benefit without creating so much surface area that it could get blown around in the wind, and the U-profile helps to ensure stability in crosswinds."
    Bicycling Australia Logo "Their low weight is evident in acceleration and while climbing. Powering along the flats they are comfortable and don't hold you back... a level of confidence that will put your best times on notice."

    In the Box

    Contents

    • Hunt Black Shield tubeless tape fitted to wheels.
    • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
    • Cassette spacer for 8/9/10 speed
    • Tubeless Valves
    • Quality control card signed by your wheel builder
