HUNT 60 Limitless UD Carbon Spoke Disc Wheelset

1551g Depth Width ext Width int size
60 mm 34 mm 21 mm 700c

Deep-section aero wheels designed to reduce drag in the fastest and most chaotic crit finales, but light enough for road race courses and stable enough to keep you low and in control, regardless of the wind conditions.

Made possible by combining patented LIMITLESS aero technology with UD Carbon spokes to create an unbeatably fast, wind tunnel-proven wheelset at the lowest weight possible.

Tire size: Aero optimized for 25 to 28mm tires. Work well with 25mm up to 45mm.

$2,299
Limited Stock. Available Now.
Stainless Steel Bearings $2,299 - Limited Stock
CeramicSpeed $2,699 - Limited Stock
Dispatched same day if ordered by 10am EST. Delivery time is 2-6 days*

We will ask for axle info after checkout.

US HQ & Warehouse. Order by 2pm (MST) for next day shipping (If shown in stock, applies to lower 48 states).

Our wheels are in high demand, don't miss out. Order now.

H_CARE

FREE LIFETIME CRASH REPLACEMENT

To ensure you're not out of pocket should the worst happen. Learn more.

The Purpose _

The 60 Limitless UD Carbon Spoke Disc Wheels in the studio

The Purpose _

Designed for ultra-fast criterium or road racing, the 60 Limitless Aero Disc was designed to minimize aerodynamic drag while maintaining a smooth steering moment, allowing riders to carry higher speeds through corners and variable wind conditions. Patented LIMITLESS technology allow us to create ultra-wide and stable aerodynamic profiles without the weight penalty. TaperLock UD carbon spoke technology further reduces system weight, while increasing lateral responsiveness and reducing high frequencing road vibration, resulting in an extremely fast deep section that allows you stay low and in control in your most aero riding position.

The 60 Limitless UD Carbon Spoke Disc Wheels in the studio

Full Specs _

Rims
Wind tunnel tested, aerodynamically optimized for 25-28c tires Disc-specific tubeless-ready profile Hooked H-lock bead-seat up-kicks for easy and secure tubeless installation 34mm outer and 21mm inner width 60mm depth Matt black base finished with matt white contrasting graphics.
  • Wind tunnel tested, aerodynamically optimized for 25-28c tires
  • Disc-specific tubeless-ready profile
  • Hooked
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • 34mm outer and 21mm inner width
  • 60mm depth
  • Matt black base finished with matt white contrasting graphics.
Spokes
TaperLock nipples secure spokes head to the hub 2.7g per spoke 18 front (1 cross on rotor side, radial on drive side) 20 rear (2 cross both sides) No interlacing Bladed
  • TaperLock nipples secure spokes head to the hub
  • 2.7g per spoke
  • 18 front (1 cross on rotor side, radial on drive side)
  • 20 rear (2 cross both sides)
  • No interlacing
  • Bladed
Nipples
TaperLock nipples secure spoke head to the hub. Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing. Internal nipple for truing. Black anodized finish.
  • TaperLock nipples secure spoke head to the hub.
  • Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing.
  • Internal nipple for truing.
  • Black anodized finish.
Front Hub
HUNT Sprint SLC straight-pull hubs. Forged and CNC’d 7075-T6 heat treated aluminium alloy body. TaperLock spoke interface. 7075-T6 aluminium alloy axles. Polished anodized black finish with laser graphics. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • HUNT Sprint SLC straight-pull hubs.
  • Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
  • TaperLock spoke interface.
  • 7075-T6 aluminium alloy axles.
  • Polished anodized black finish with laser graphics.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

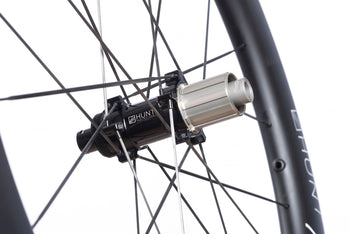

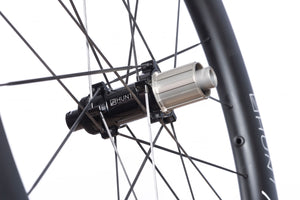

Rear Hub
HUNT Sprint SLC straight-pull hubs. Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration. All freehub standards accounted for. 7075-T6 aluminium alloy axles. Forged and CNC’d 7075-T6 heat treated aluminium alloy body. TaperLock spoke interface Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here Polished anodized black finish with laser graphics.
  • HUNT Sprint SLC straight-pull hubs.
  • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
  • All freehub standards accounted for.
  • 7075-T6 aluminium alloy axles.
  • Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
  • TaperLock spoke interface
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Polished anodized black finish with laser graphics.
Bearings
Industry leading CeramicSpeed hybrid ceramic bearings 3 to 5 times longer lasting than other ceramic bearings on the market and 10 times more than standard steel bearings. CeramicSpeed bearing balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. 15% harder, take 99% higher loads and are more than 100% smoother than other ceramic balls typically seen in the market. The smoothness and the hardness of the CeramicSpeed Balls are unique. 4 year warranty (When registered with CeramicSpeed).
  • Industry leading CeramicSpeed hybrid ceramic bearings
  • 3 to 5 times longer lasting than other ceramic bearings on the market and 10 times more than standard steel bearings.
  • CeramicSpeed bearing balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. 15% harder, take 99% higher loads and are more than 100% smoother than other ceramic balls typically seen in the market. The smoothness and the hardness of the CeramicSpeed Balls are unique.
  • 4 year warranty (When registered with CeramicSpeed).
Tires Info
HUNT recommends a 25-28mm tire for best performance, tire widths between 25mm and 47mm are also safe to use.   Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
  • HUNT recommends a 25-28mm tire for best performance, tire widths between 25mm and 47mm are also safe to use.
  • Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
Axle Sizes
These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.
  • These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:
  • Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
  • If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

Patented Limitless Technology

In order to create the most aerodynamic & stable shape for the tire, a rim bed of 21mm is needed. With the tire profile this creates, the ideal shape of the rim curves out to an external width of 34mm. To overcome the weight penalty associated with this, we use a (non-structural) low density expanding polymer insert, inside a channel carved out during the production process. This is bonded to the carbon during the curing process, resulting in a uniform and strong bond. The density of carbon is 1.6g per cubic centimetre, whereas the polymer insert weighs just 0.7g per cubic centimetre, resulting in a (rotational) mass loss of just over 50g per rim. This patented technology enables us to consider the limits of material properties, and smash right past them.

Patented Limitless Technology

This is bonded to the carbon during the curing process, resulting in a uniform and strong bond. The density of carbon is 1.6g per cubic centimetre, whereas the polymer insert weighs just 0.7g per cubic centimetre, resulting in a (rotational) mass loss of just over 50g per rim. This patented technology enables us to consider the limits of material properties, and smash right past them.

SLC Hubs

Our SLC hubs are developed specifically for UD carbon spokes, and boast a high strength-to-weight ratio owing to their forged 7075 construction.

Tire Width Optimisation

Our Limitless road rims are optimized for a 28mm Schwalbe Pro One. Patented LIMITLESS technology allows for a 21mm rim bed and a huge 34mm external rim width, meaning the rim sits far wider than the tire for aerodynamic efficiency.

UD Carbon Spokes

TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke. Owing to the TaperLock technology, these spokes can be trued using a spoke key from inside the rim bed.

CeramicSpeed Bearings

You can spec your Limitless wheels with CeramicSpeed's industry-leading hybrid ceramic bearings. All CeramicSpeed ball bearings are Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. The quality of the balls is what determines the performance and lifetime of a bearing. The CeramicSpeed Balls feature unparalleled impact strength, smoothness, roundness and brittleness.

What's in the box _

  • HUNT Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed
  • 80mm Tubeless Valves
  • Quality control card signed by your wheel builder

<h1>In the Box</h1><ul><li>HUNT Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Tubeless Valves</li><li>Quality control card signed by your wheel builder</li></ul>

WARRANTY_

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners. Read all about it here.

A full 3 years (4 years on CeramicSpeed bearings*) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 273 lb (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 233s then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
