HUNT 32 Aerodynamicist UD Carbon Spoke Disc Wheelset
<h1>Rims</h1><i>Aerodynamicist disc-specific rim profiles, designed from the ground up by HUNT engineers. Toray T700/T800 carbon fiber with a stronger ratio of T800 (T40) fibers to achieve a greater strength-to-weight ratio. Unidirectional sidewalls with 3K weave bed and spoke areas. Tubeless-ready for lower weight, rolling resistance, and better puncture protection.</i>
<h1>AERODYNAMICIST RIM PROFILE</h1><i>As learned from our Limitless Research project & wind tunnel time the past 3 years, an optimum aerodynamic benefit for a drop-bar bike is yielded from widening rim profiles. This allows for a far more 'blunted' spoke bed area, resulting in predictable airflow at a wider variety of wind yaw angles. The wider profile ensures the flow stays attached to the surface as long as possible before the point of separation, which is key as yaw angles increase.</i>
<h1>STIFFNESS-TO-WEIGHT</h1><i>Engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels. Coming in at just 1213g but with significant increases in lateral responsiveness, climbing wheels have never been so fast.</i>
<h1>UD CARBON SPOKES</h1><i>TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke. Owing to the TaperLock technology, these spokes can be trued using a spoke key from inside the rim bed.</i>
<h1>HOOKLESS/STRAIGHT-SIDEWALL DESIGN</h1><i>When designing a wheelset with absolute lightness as the driving principle, then a hookless rim profile is the right choice. The weight savings offered (whilst being able to strengthen the rim) allow for a 1213g disc-brake wheelset that also offers an aerodynamic benefit over standard box section rims. </i>
<h1>FREEHUB BODY</h1><i>Featuring 3x treble-tooth pawls and a 48 tooth ratchet ring results in an impressively low 7.5-degree engagement angle, and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which drive a consistent engagement. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage.</i>
<h1>TIRE WIDTH OPTIMISATION</h1><i>Designed around a 21mm internal rim width optimized for a 28c (hookless-compatible) tire. These wheels feature a hookless/straight-sidewall design and are fully ETRTO-compatible and tubeless-ready.</i>
<h1>ADAPTABILITY</h1><i>Our wheels are futureproof. We can adapt your wheels to any current axle standard. You just need to let us know what you require by filling in the simple form on the confirmation page after checkout. Please note these wheels will not work with the older 15mm front road TA standard.</i>
<h1>WEIGHT</h1><i>The consequence of the fanatical attention to detail is an outstandingly light 1213 gram wheelset weight. Gone are the days when having a disc-equipped road bike always resulted in a weight penalty. You can now float up the climbs, and then brake later than the others on the way back down!</i>
<h1>Hunt Carbon Spoke Graph</h1><i>For high frequency vibration, carbon spokes offer much greater damping characteristics to that of an equivalent steel spoke</i>
<h1>In The Box</h1><i><ul><li>HUNT BlackShield tubeless tape fitted to wheels.</li><li> The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li> <li>Cassette spacer for 8/9/10 speed</li> <li>Tubeless Valves</li> <li>Quality control card signed by your wheelbuilder</li></i>
30% off
<h1>Rims</h1><i>Aerodynamicist disc-specific rim profiles, designed from the ground up by HUNT engineers. Toray T700/T800 carbon fiber with a stronger ratio of T800 (T40) fibers to achieve a greater strength-to-weight ratio. Unidirectional sidewalls with 3K weave bed and spoke areas. Tubeless-ready for lower weight, rolling resistance, and better puncture protection.</i>
<h1>AERODYNAMICIST RIM PROFILE</h1><i>As learned from our Limitless Research project & wind tunnel time the past 3 years, an optimum aerodynamic benefit for a drop-bar bike is yielded from widening rim profiles. This allows for a far more 'blunted' spoke bed area, resulting in predictable airflow at a wider variety of wind yaw angles. The wider profile ensures the flow stays attached to the surface as long as possible before the point of separation, which is key as yaw angles increase.</i>
<h1>STIFFNESS-TO-WEIGHT</h1><i>Engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels. Coming in at just 1213g but with significant increases in lateral responsiveness, climbing wheels have never been so fast.</i>
<h1>UD CARBON SPOKES</h1><i>TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke. Owing to the TaperLock technology, these spokes can be trued using a spoke key from inside the rim bed.</i>
<h1>HOOKLESS/STRAIGHT-SIDEWALL DESIGN</h1><i>When designing a wheelset with absolute lightness as the driving principle, then a hookless rim profile is the right choice. The weight savings offered (whilst being able to strengthen the rim) allow for a 1213g disc-brake wheelset that also offers an aerodynamic benefit over standard box section rims. </i>
<h1>FREEHUB BODY</h1><i>Featuring 3x treble-tooth pawls and a 48 tooth ratchet ring results in an impressively low 7.5-degree engagement angle, and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which drive a consistent engagement. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage.</i>
<h1>TIRE WIDTH OPTIMISATION</h1><i>Designed around a 21mm internal rim width optimized for a 28c (hookless-compatible) tire. These wheels feature a hookless/straight-sidewall design and are fully ETRTO-compatible and tubeless-ready.</i>
<h1>ADAPTABILITY</h1><i>Our wheels are futureproof. We can adapt your wheels to any current axle standard. You just need to let us know what you require by filling in the simple form on the confirmation page after checkout. Please note these wheels will not work with the older 15mm front road TA standard.</i>
<h1>WEIGHT</h1><i>The consequence of the fanatical attention to detail is an outstandingly light 1213 gram wheelset weight. Gone are the days when having a disc-equipped road bike always resulted in a weight penalty. You can now float up the climbs, and then brake later than the others on the way back down!</i>
<h1>Hunt Carbon Spoke Graph</h1><i>For high frequency vibration, carbon spokes offer much greater damping characteristics to that of an equivalent steel spoke</i>
<h1>In The Box</h1><i><ul><li>HUNT BlackShield tubeless tape fitted to wheels.</li><li> The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li> <li>Cassette spacer for 8/9/10 speed</li> <li>Tubeless Valves</li> <li>Quality control card signed by your wheelbuilder</li></i>

HUNT 32 Aerodynamicist UD Carbon Spoke Disc Wheelset

1213g Depth Width ext Width int size
32 mm 25 mm 21 mm 700c

Engineered from scratch for big days in the high mountains. Ultralight hookless rims keep rotating mass absurdly low, hand-laced with UD carbon spokes to further reduce weight and increase lateral responsiveness. The wind-tunnel designed 25mm wide/32mm deep Aerodynamicist rim profile slips through wind, savings seconds up and down.

HUNT Sprint SLC hubs transfer power efficiently and reliably, with an engagement angle of just 7.5 degrees.

Tire size: Aero optimized for 25 to 28mm tires; work well with 25mm up to 40mm.

ROAD.CC AWARDS FINALIST

Light, stiff and well priced – these fly up the climbs and are well worth the money
Which freehub do I need?
$1,280.30 $1,829.00
30% off
Limited Stock. Available Now.Items are selected to ship from us in the week stated. Delivery time is 2-6 days*

We will ask for axle info after checkout.

US HQ & Warehouse. Order by 2pm (MST) for shipping the next business day (if shown in stock).

Our wheels are in high demand, don't miss out. Order now.

H_CARE

FREE LIFETIME CRASH REPLACEMENT

To ensure you're not out of pocket should the worst happen. Learn more.

More details Right

The Purpose _

<h1>STIFFNESS-TO-WEIGHT</h1><i>Engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels. Coming in at just 1213g but with significant increases in lateral responsiveness, climbing wheels have never been so fast.</i>

The Purpose _

We created the 32 Aerodynamicist UD Carbon Spoke Disc wheelset for riders who seek out the high mountains. The result of extensive research and development, and years of experience progressing proprietary HUNT Aerodynamicist designs, we paired lightweight, hookless rims with UD Carbon Spokes for added lateral stiffness, as well as further weight reduction. Laced to our new cold-forged Sprint SLC hubs with rapid 7.5-degree engagement and enhanced power transfer, this wheelset is exceedingly lightweight at 1213 grams, while still offering the responsiveness, reliability and serviceability that HUNT riders have come to expect.

KEY FEATURES_

<h1>UD CARBON SPOKES</h1><i>TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke. Owing to the TaperLock technology, these spokes can be trued using a spoke key from inside the rim bed.</i>

EZO Stainless Steel Bearings

High-grade Japanese EZO bearings. Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.

The 32 Aerodynamicist UD Carbon Spoke Disc wheelset being used on the road

UD Carbon Spokes

6% more laterally responsive than identical steel spoked wheels, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fiber in the UD spokes, as well as the rim.

The 32 Aerodynamicist UD Carbon Spoke Disc wheelset being used on the road

Aerodynamicist

Aerodynamicist 32mm-deep and 25mm-wide rim profile, exclusively engineered and wind tunnel tested by HUNT's in-house engineering team, featuring a hookless/straight-sidewall and ETRTO-compliant tubeless-ready rim, designed for tubeless tire compatibility.

The 32 Aerodynamicist UD Carbon Spoke Disc wheelset being used on the road, with the higher power transfer through the carbon spokes being utilised during an effort

Sprint SLC Hubs

Sprint SLC hubs add strength and enhance power transfer, meaning more of your power pushing you forwards. The hub shell is a cold-forged 7000 series alloy, offering a greater strength-to-weight ratio than extruded 6000 series alloys. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps ensure a secure fitment. Center-lock brake mount.

TECHNOLOGY _

For high frequency vibration, carbon spokes offer much greater damping characteristics to that of an equivalent steel spoke

Full Specs _

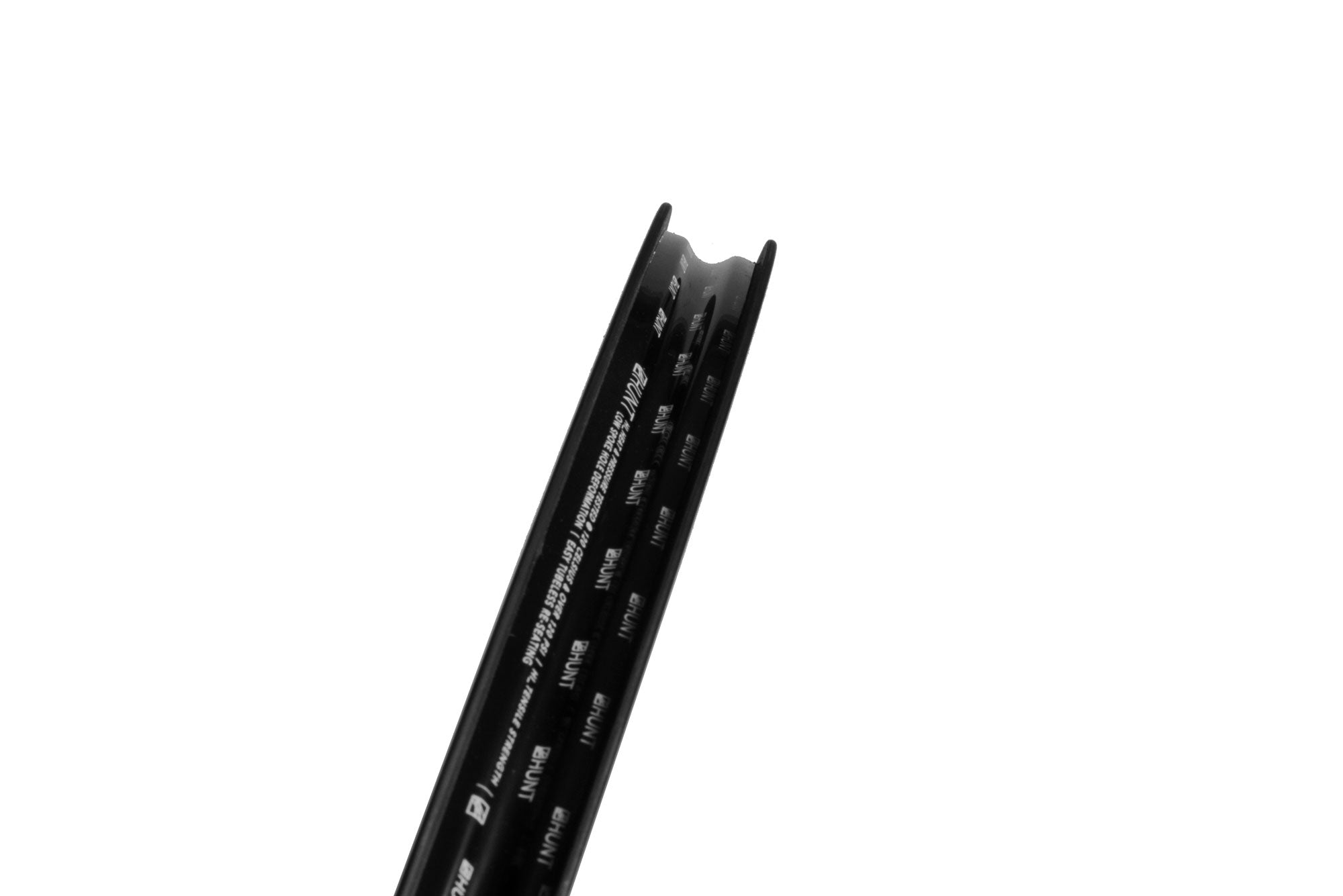

Rims
Aerodynamicist profile, disc-specific hookless/straight-sidewall design & aerodynamically optimized for 28c tires. Unidirectional T24/30 carbon fiber with 3K weave re-enforced spoke holes. 25mm external and 21mm internal width. 32mm depth. H_LOCK Wedge bead-seat up-kicks, for easy and secure tubeless installation. Matt black base finished with matt white contrasting graphics.
  • Aerodynamicist profile, disc-specific hookless/straight-sidewall design & aerodynamically optimized for 28c tires.
  • Unidirectional T24/30 carbon fiber with 3K weave re-enforced spoke holes.
  • 25mm external and 21mm internal width.
  • 32mm depth.
  • H_LOCK Wedge bead-seat up-kicks, for easy and secure tubeless installation.
  • Matt black base finished with matt white contrasting graphics.
Spokes
TaperLock UD carbon fiber spokes, weighing only 2.7g per spoke. 18 front (2 cross on rotor side, radial on drive side) and 20 rear (2 cross both sides) Bladed
  • TaperLock UD carbon fiber spokes, weighing only 2.7g per spoke.
  • 18 front (2 cross on rotor side, radial on drive side) and 20 rear (2 cross both sides)
  • Bladed
Nipples
TaperLock nipples secure spoke head to the hub. Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing. Internal nipple for truing. Black anodized finish.
  • TaperLock nipples secure spoke head to the hub.
  • Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing.
  • Internal nipple for truing.
  • Black anodized finish.
Front Hub
TaperLock spoke interface Forged and CNC’d 7075-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Polished anodized black finish with laser graphics. HUNT SPRINT SLC Disc straight-pull super-light alloy. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
  • TaperLock spoke interface
  • Forged and CNC’d 7075-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Polished anodized black finish with laser graphics.
  • HUNT SPRINT SLC Disc straight-pull super-light alloy.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.

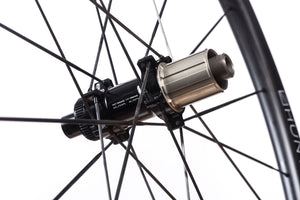

Rear Hub
TaperLock spoke interface 7075-T6 heat-treated aluminium alloy freehub body. Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration. All freehub standards accounted for. HUNT SPRINT Disc straight-pull super-light alloy. Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here Polished anodized black finish with laser graphics.
  • TaperLock spoke interface
  • 7075-T6 heat-treated aluminium alloy freehub body.
  • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
  • All freehub standards accounted for.
  • HUNT SPRINT Disc straight-pull super-light alloy.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Polished anodized black finish with laser graphics.
Bearings
High-grade Japanese EZO bearings. Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual-sealed external face bearings. Incredibly fast rolling.
  • High-grade Japanese EZO bearings.
  • Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual-sealed external face bearings.
  • Incredibly fast rolling.
Tires Info
HUNT recommends a 28mm tire for best performance, tire widths between 25mm and 47mm are also safe to use.   Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  Only use tires marked as compatible with hookless (TSS) rims.  You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
  • HUNT recommends a 28mm tire for best performance, tire widths between 25mm and 47mm are also safe to use.
  • Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • Only use tires marked as compatible with hookless (TSS) rims.
  • You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
Axle Sizes
These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't get it quite right, we're happy to send you the correct adapters. Please note; this form is shown after you have completed your order.

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't get it quite right, we're happy to send you the correct adapters. Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

<h1>AERODYNAMICIST RIM PROFILE</h1><i>As learned from our Limitless Research project & wind tunnel time the past 3 years, an optimum aerodynamic benefit for a drop-bar bike is yielded from widening rim profiles. This allows for a far more 'blunted' spoke bed area, resulting in predictable airflow at a wider variety of wind yaw angles. The wider profile ensures the flow stays attached to the surface as long as possible before the point of separation, which is key as yaw angles increase.</i>
Rims

Aerodynamicist disc-specific rim profiles, designed from the ground up by HUNT engineers. Toray T700/T800 carbon fiber with a stronger ratio of T800 (T40) fibers to achieve a greater strength-to-weight ratio. Unidirectional sidewalls with 3K weave bed and spoke areas. Tubeless-ready for lower weight, rolling resistance, and better puncture protection.

<h1>AERODYNAMICIST RIM PROFILE</h1><i>As learned from our Limitless Research project & wind tunnel time the past 3 years, an optimum aerodynamic benefit for a drop-bar bike is yielded from widening rim profiles. This allows for a far more 'blunted' spoke bed area, resulting in predictable airflow at a wider variety of wind yaw angles. The wider profile ensures the flow stays attached to the surface as long as possible before the point of separation, which is key as yaw angles increase.</i>
Aerodynamicist Rim Profile

As learned from our Limitless Research project & wind tunnel time the past 3 years, an optimum aerodynamic benefit for a drop-bar bike is yielded from widening rim profiles. This allows for a far more 'blunted' spoke bed area, resulting in predictable airflow at a wider variety of wind yaw angles. The wider profile ensures the flow stays attached to the surface as long as possible before the point of separation, which is key as yaw angles increase.

<h1>STIFFNESS-TO-WEIGHT</h1><i>Engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels. Coming in at just 1213g but with significant increases in lateral responsiveness, climbing wheels have never been so fast.</i>
Stiffness-to-weight

Engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels. Coming in at just 1213g but with significant increases in lateral responsiveness, climbing wheels have never been so fast.
Hookless/Straight-sidewall design

When designing a wheelset with absolute lightness as the driving principle, then a hookless rim profile is the right choice. The weight savings offered (whilst being able to strengthen the rim) allow for a 1213g disc-brake wheelset that also offers an aerodynamic benefit over standard box section rims.

<h1>FREEHUB BODY</h1><i>Featuring 3x treble-tooth pawls and a 48 tooth ratchet ring results in an impressively low 7.5-degree engagement angle, and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which drive a consistent engagement. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage.</i>
Freehub Body

Featuring 3x treble-tooth pawls and a 48 tooth ratchet ring results in an impressively low 7.5-degree engagement angle, and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which drive a consistent engagement. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage.

<h1>WEIGHT</h1><i>The consequence of the fanatical attention to detail is an outstandingly light 1213 gram wheelset weight. Gone are the days when having a disc-equipped road bike always resulted in a weight penalty. You can now float up the climbs, and then brake later than the others on the way back down!</i>

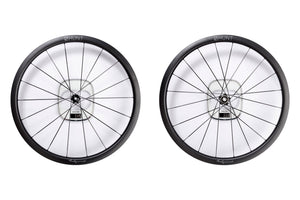

Weight

The consequence of the fanatical attention to detail is an outstandingly light 1213 gram wheelset weight. Gone are the days when having a disc-equipped road bike always resulted in a weight penalty. You can now float up the climbs, and then brake later than the others on the way back down!

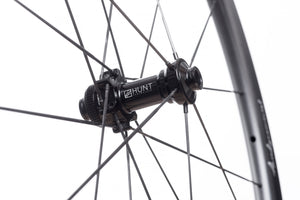

Detailed image of the front hub on the 32 Aerodynamicist UD Carbon Spoke Disc wheelset
UD Carbon Spokes

TaperLock UD carbon spokes offer up to a 30% increase in lateral responsiveness against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~450kgf per spoke. Owing to the TaperLock technology, these spokes can be trued using a spoke key from inside the rim bed.

REVIEWS _

Bike Magazine and Websites Expert's Views

ROAD.CC AWARDS FINALIST

Light, stiff and well priced – these fly up the climbs and are well worth the money

BICYCLING MAG TESTED REVIEW

"The wheels offer outstanding performance for road riders who love climbing or prefer a snappy feeling wheelset to an aero one."

What's in the box _

  • HUNT Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed
  • 45mm Tubeless Valves
  • Quality control card signed by your wheel builder

WARRANTY_

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners. Read all about it here.

A full 3 years (4 years on CeramicSpeed bearings) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 275 lb (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 233 lb then an experienced bike mechanic should check the wheel regularly. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
