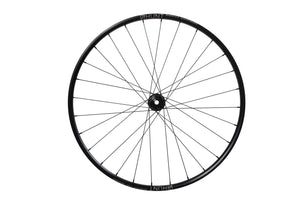

RE:NEW HUNT Trail Wide MTB 27.5 Wheelset

$339 $529.00
36% off

We will ask for Axle info after checkout.

All import duties, taxes and handling costs are covered by us.

Order ETA 3-6 days*
Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

The Trail Wide is your go-to wheelset no matter the conditions. Optimised to still take the A-lines on the descents and not hold you back on the climbs.

27.5" | 30mm Int. | 1761G

The Purpose

After almost three years of unwavering service on the toughest trails, with numerous awards and recognitions along the way, the restless design team at HUNT saw an opportunity to update the Trail Wide wheelset to meet the evolving demands of today’s riders.

Starting with what we learnt around profile optimisation from the burlier Enduro Wide V2 project, we set out to improve upon its lighter sibling, not an easy task with an Editor’s Choice-winning wheelset.

Combining the all-new 30mm internal rim profile, with new hubs and spoke configurations, results in a wheel that keeps the outward appearance of it's predecessor yet provide 20% more impact resistance.

Designed as the answer to your trail centre weekends, back country epics or days spent smashing through your local woods - a wheelset that can do it all and leave you with a big grin.

The Purpose

After almost three years of unwavering service on the toughest trails, with numerous awards and recognitions along the way, the restless design team at HUNT saw an opportunity to update the Trail Wide wheelset to meet the evolving demands of today’s riders.
Read More
Starting with what we learnt around profile optimisation from the burlier Enduro Wide V2 project, we set out to improve upon its lighter sibling, not an easy task with an Editor’s Choice-winning wheelset.

Combining the all-new 30mm internal rim profile, with new hubs and spoke configurations, results in a wheel that keeps the outward appearance of it's predecessor yet provide 20% more impact resistance.

Designed as the answer to your trail centre weekends, back country epics or days spent smashing through your local woods - a wheelset that can do it all and leave you with a big grin.Read Less

Key Features

We see wheels as a system, not a single component

  • Rims | 6069 T6 (490 MPa, + 69% Ultimate Tensile Strength over 6061-T6) welded construction, 30mm wide (internal), work-hardened shot-peened finish.
  • Hubs | 5° RapidEngage, boost (110/148 ), Boost QR (141mm), Super-Boost (157/12) or standard (100/142) spacing hubs available, large double sealed cartridge bearings. Rock Shox Torque Caps for Boost hubs and QR adapters for hubs are available. 
  • Spokes | 28h Spoke Count, Triple Butted (2.2-1.8-2.0) PSR reinforced Pillar Spokes.
  • Tires | Optimised for 2.3"-2.5" tires set up Tubeless, but also work very well with 2.25"-2.8". Also great with standard tires and tubes.
  • Axles | 7075-T6 axles for strength and stiffness, reduced flex in the hub also helps to increase bearing life.
  • See the full specs here
  • Weight | 1761g

The Experts' View

Singletracks ReviewBike Perfect Logo Offroadcc Logo MBR Logo MBUK Logo Pinkbike Logo

Full Specs

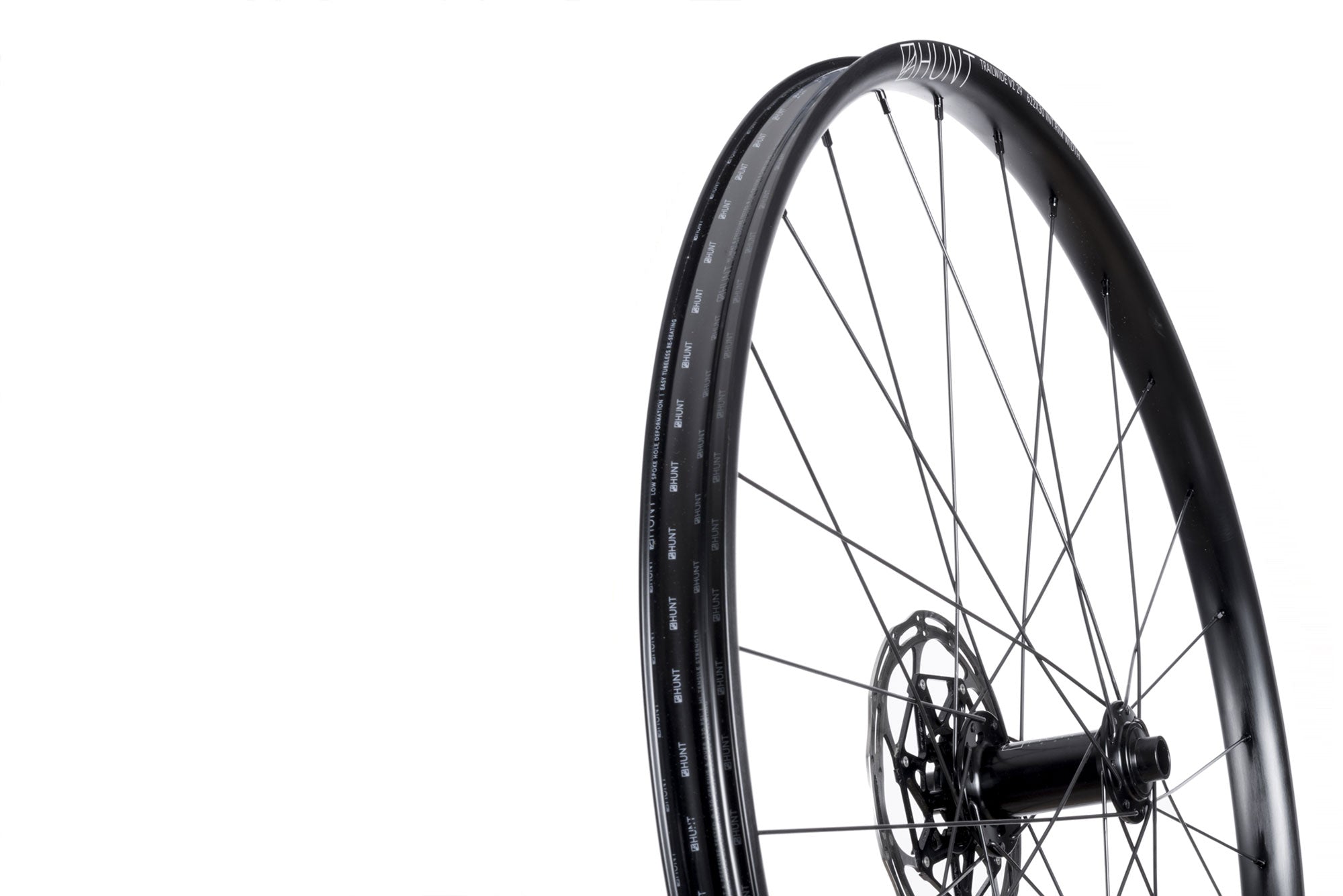

  • Rims

    • 30mm internal width ideal for 2.3"-2.4" tire widths, but also work very well with 2.25"-2.8".
    • 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6).
    • Tubeless-ready – designed to work best with tubeless tires. Tubeless-rim tape and valves included.
    • H-lock bead-seat up-kicks for easy and secure tubeless installation.
    • Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
  • Spokes

    • J-bend cold drawn.
    • 28F/28R spoke count.
    • Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
    • Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
    • Black stainless treatment.
    • Nipples

      • Hard-anodized alloy for weight reduction and strength.
      • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
      • Long 14mm thread for durability.
      • 14 gauge.
      • Black finish
    • Tires Info

      • Maximum tire pressure for this rim: up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tire.
      • Designed to work perfectly with tubeless and non-tubeless tires.
      • Suitable tubeless MTB tire combinations from Schwalbe and Maxxis are available to be fitted to your Hunt TrailWide Wheels.
    • Axle Size

      • Boost - 148x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
      • Standard - 142x12 (Rear) with 100x15mm (Front). QR adapters available - just complete the simple form after checkout.
      • SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.

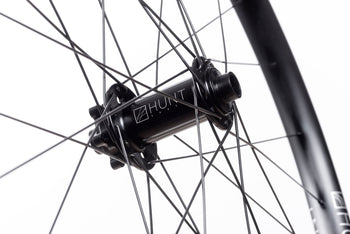

    • Front Hub

      • Forged and CNC’d 6061-T6 heat treated aluminium alloy Hub body
      • 7075-T6 aluminium alloy axles.
      • Oversized 7075-T6 aluminium alloy axles.
      • 110x15mm or 100mm spacing. Rock Shox Torque Caps for Boost and QR options available - just add a comment in the notes section on the cart page.
      • Polished anodized black finish with laser graphics.
      • 6 bolt disc mount/center-lock option available
    • Rear Hub

      • Extruded and CNC machined 6066-T6 heat-treated aluminium alloy hub body.
      • 148x12mm or 142x12mm spacing.

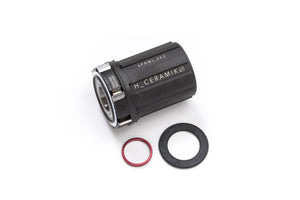

      • H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
      • Boost QR skewers NOT supplied.
      • 3x2 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
      • Oversized 7075-T6 heat treated aluminium axles.
      • 9/10/11 speed Shimano/SRAM compatible freehub and SRAM XD Driver version available.
      • 7075-T6 aluminium alloy axles.
      • 6 bolt disc mount.
      • Polished anodized black finish with laser graphics.
    • Bearings

      • Precision sealed cartridge replaceable units.
      • Large diameter ball bearings for extra durability.
      • Dual full-contact rubber seals.
    • Warranty, Support and Weight Limits

      A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

      All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. 264lbs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 240lbs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires at max 40psi as this will reduce the fatigue on the wheelset.

      Crash replacement 35% off plus All HUNT wheels models have been designed to meet the needs of the type of riding they are intended for. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

      60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

      Tubeless Tire Options

      We can supply tubeless tires (including sealant) with your wheels. The wheels are also designed to work excellently with clincher tires and tubes. See recommended tire options below.

      Maximum tire pressure for this rim: up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tire.

      To see the full range, click here

      Reviews

      Bike Magazine and Website Experts' Views

      Singletracks Logo

      Singletracks Review

      "All of this is to say that the Hunt Trail Wides have been a great wheel set and an easy upgrade for a lot of folks."
      Bike Perfect Logo

      Bike Perfect 4.5/5 Review

      "Same excellent ride quality, big tire support and an increase in rim toughness make Hunt’s Trail Wide V2 an even better-value wheel proposition"
      Offroadcc Logo

      4.5/5 Review

      "The Hunt Trail Wide 29 wheelset is a well-designed, well-made, and well-priced wheelset."

      We've got your back

      Rider Experience Support

      Unmatched rider support, 7 days a week. For quick and immediate access to all the help you need, try our Live Chat. Our team consists of real bike riders who are fully equipped to answer any questions and help out. See Contact Us page for more details.

      Spares Available

      Any spares for our wheelsets can be found on our website. If you assistance, contact us and we can help you.

      Next Day Shipping

      As enthusiastic cyclists, we know you want your bike gear so we make sure all in-stock items are packed and dispatched within 1 working day.* As soon as your order is dispatched you’ll receive an email notification.

      *Subject to stock levels & cleared payment

      60 Day Ride and Return

      These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners. A full 3 years (4 years on CeramicSpeed bearings*) from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects. Read more here.

      ABOUT HUNT _

      Hunt Bike Wheels are a team of talented, passionate riders with a wealth of industry experience, and set out to bring you the latest, most practical, forward-thinking technology in all things round.

      Our mission is to serve devoted riders with the highest performing products, backed by best-in-class rider support.

      All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
