RE:NEW HUNT 60 Limitless Aero Disc Wheelset

$1,199 $1,849.00
35% off

US HQ & Warehouse.

Order by 2pm (MST) for next day shipping (if shown in stock, applies to lower 48 states).

A HIGH-SPEED CRIT AND ROAD RACE WEAPON THAT CUTS THROUGH THE WIND BUT HANDLES LIKE A SHALLOWER RIM, ALLOWING YOU TO MAINTAIN YOUR AERO POSITION THROUGH VARIABLE CONDITIONS.

60 DEEP | 34 WIDE EXT | 21 Wide INT | 1669G

The Purpose

The 60 Limitless Aero Disc excels at minimizing aerodynamic drag while maintaining a smooth steering moment, allowing riders to carry higher speeds through corners and variable conditions.

Consistent and predictable bike handling during varying side wind conditions empowers the rider to maintain the most aerodynamic position on the bicycle and fully utilize the benefits of aerodynamically optimized wheels. Any aerodynamic advantage is immediately erased if the rider is forced to sit up in the final meters of a chaotic finish in order to maintain control.

The wheelset is ideal for all-out riding and racing at maximum speed on fast courses, like the HUNT-supported LA Sweat Team at Tulsa Tough or the Qhubeka ASSOS team in rapid, flat stages of the European grand tours.

Wind tunnel proven against world leading wheels. See the research white paper for full technical details of our wind tunnel testing methodology, including data/graphs and the full range of wheels we tested against.

CeramicSpeed’s world renowned low-friction bearings.

Introduction and Process

The all-new HUNT 60 Limitless Aero Disc wheelset was designed to provide riders maximum aerodynamic benefit in a system that maintains predictable, stable ride characteristics. Patented Limitless width technology, developed by HUNT's inhouse engineering team along with Pete Marchment (Co-Founder & Materials Scientist), utilises co-molded low-density polymer (density of 0.7g/cm3 vs. carbon fibre pre-perg of 1.6g/cm3) in the outer rim construction to achieve an extra wide profile optimized for 25-28c tires, while keeping overall rim weight low.

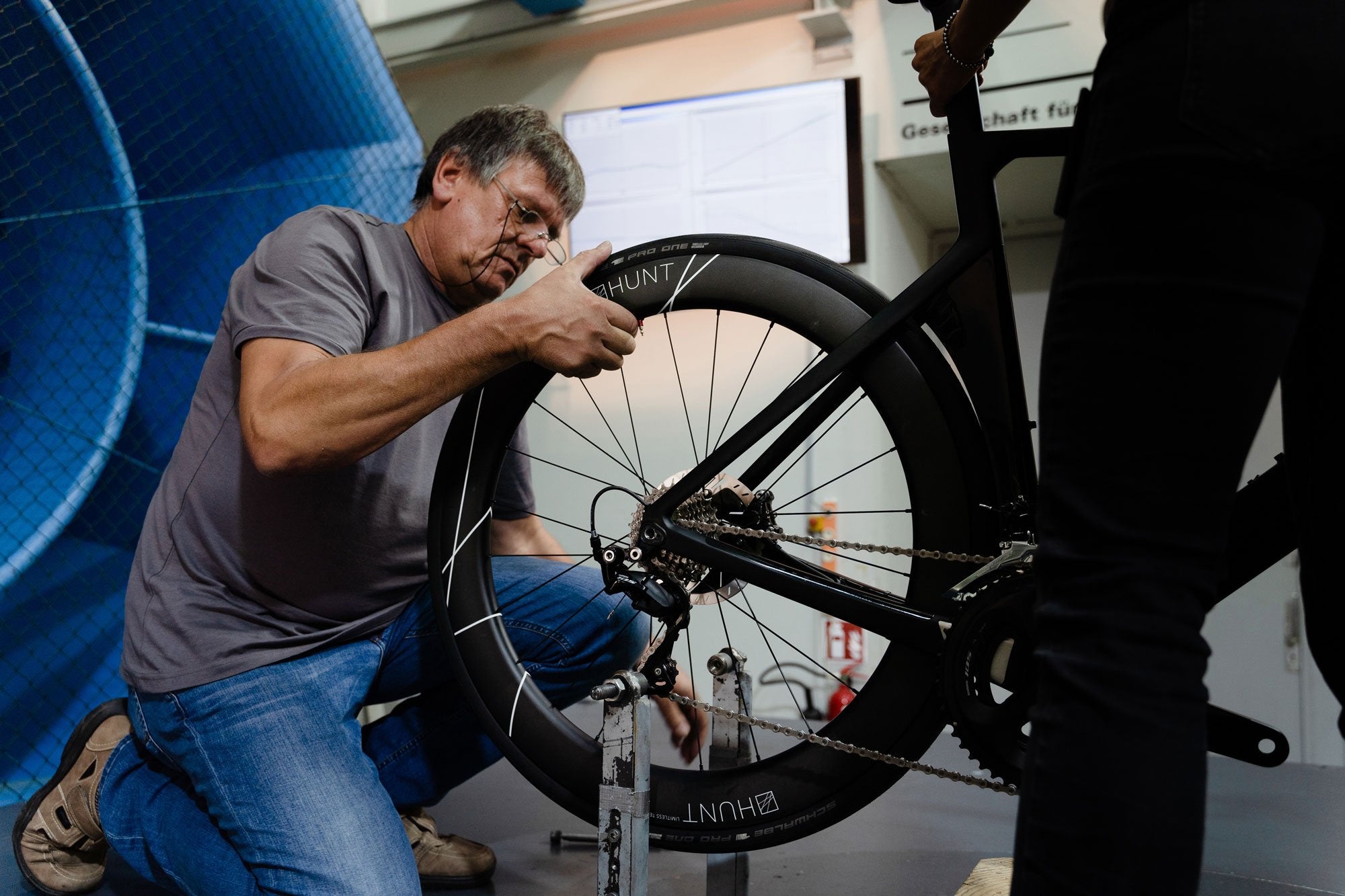

Wind tunnel results

The wind tunnel results below shows that the HUNT 60 Limitless Aero Disc offers comparable performance against a number of leading aerodynamic wheel manufacturers. When paired with the optimal Schwalbe Pro One 28mm tire the wheels were the 3rd fastest wheelset on the market at the time of testing.

The power data from the tunnel was analysed with a set of yaw angle weightings, independently published by MAVIC, showing that the wind averaged power difference is as minimal as 0.35W between the HUNT 60 Limitless Aero Disc and ENVE 5.6 SES DISC and 0.22W between HUNT 60 Limitless Aero Disc and ROVAL RAPIDE CLX. The testing sessions also found that the 60 Limitless Aero Disc outperforms some deeper, highly considered wheelsets on the market.

The Steering Moment analysis confirms the predictable and stable handling characteristics of the HUNT 60 Limitless Aero Disc, particularly at yaw angles greater than 10 degrees. For a number of the competitors wheelsets, significant changes in the steering moment curve gradient are observed in the region of 10 degrees yaw, which could result in unpredictable forces felt when encountering changes in wind direction at higher yaw angles such as cornering hard into the final turn of a sprint or turning onto Queen Ka’ahumanu Highway heading back into Kailua-Kona.

60 LAD Wind Tunnel Resuts

Figure 11: Drag [g] vs yaw angle [°] from final wind tunnel test November 2020 showing HUNT LIMITLESS 60 AERO DISC against competitors using a Schwalbe Pro One 28mm tire

60 LAD steering moment vs yaw angle

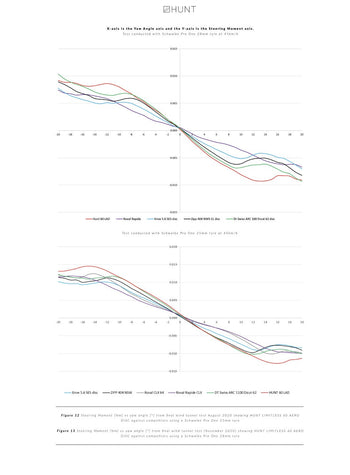

Figure 12: Steering Moment [Nm] vs yaw angle [°] from final wind tunnel test August 2020 showing HUNT LIMITLESS 60 AERO DISC against competitors using a Schwalbe Pro One 25mm tire

Figure 13: Steering Moment [Nm] vs yaw angle [°] from final wind tunnel test November 2020 showing HUNT LIMITLESS 60 AERO DISC against competitors using a Schwalbe Pro One 28mm tire

Cross Wind Stability

Many riders are familiar with the unsettling feeling of turning onto an unprotected road and immediately getting hit with a strong gust of wind; your heart skips a beat for half a second and you grip the bars a little tighter as you regain your confidence. With the development of the 60 Limitless Aero Disc, HUNT set out to make a wheelset that could have smooth and consistent airflow around the rim when you need it most.

As first explored in the testing of the 42 Limitless Gravel Disc, HUNT monitors various elements of aerodynamic performance, including side forces that act on the rims, and the effect those forces have on the steering moment. As with our previous projects, our wheels are tested through a range of effective yaw angles between negative 20 degrees and positive 20 degrees.

Concluded in the white paper attached, the steering moment analysis on the 60 Limitless Aero Disc and its closest competitors confirms predictable and stable handling characteristics. Most notably when the yaw angles are greater than 10 degrees. In the analysis, one can see that there are significant changes in the steering moment curve gradient when in the region of 10 degrees yaw, which could result in unpredictable forces felt when encountering changes in wind direction at higher yaw angles. These changes in wind direction occur numerous times when riding through a city, as wind constantly changes in direction and magnitude as it is pushed up, around and down off of buildings resulting in often chaotic wind flow.

Read Less

The Purpose

The 60 Limitless Aero Disc excels at minimizing aerodynamic drag while maintaining a smooth steering moment, allowing riders to carry higher speeds through corners and variable conditions.

Consistent and predictable bike handling during varying side wind conditions empowers the rider to maintain the most aerodynamic position on the bicycle and fully utilize the benefits of aerodynamically optimized wheels. Any aerodynamic advantage is immediately erased if the rider is forced to sit up in the final meters of a chaotic finish in order to maintain control.

The wheelset is ideal for all-out riding and racing at maximum speed on fast courses, like the HUNT-supported LA Sweat Team at Tulsa Tough or the Qhubeka ASSOS team in rapid, flat stages of the European grand tours.

Wind tunnel proven against world leading wheels. See the research white paper for full technical details of our wind tunnel testing methodology, including data/graphs and the full range of wheels we tested against.

CeramicSpeed’s world renowned low-friction bearings.

Introduction and Process

The all-new HUNT 60 Limitless Aero Disc wheelset was designed to provide riders maximum aerodynamic benefit in a system that maintains predictable, stable ride characteristics. Patented Limitless width technology, developed by HUNT's inhouse engineering team along with Pete Marchment (Co-Founder & Materials Scientist), utilises co-molded low-density polymer (density of 0.7g/cm3 vs. carbon fibre pre-perg of 1.6g/cm3) in the outer rim construction to achieve an extra wide profile optimized for 25-28c tires, while keeping overall rim weight low.


Wind tunnel results

The wind tunnel results below shows that the HUNT 60 Limitless Aero Disc offers comparable performance against a number of leading aerodynamic wheel manufacturers. When paired with the optimal Schwalbe Pro One 28mm tire the wheels were the 3rd fastest wheelset on the market at the time of testing.

The power data from the tunnel was analysed with a set of yaw angle weightings, independently published by MAVIC, showing that the wind averaged power difference is as minimal as 0.35W between the HUNT 60 Limitless Aero Disc and ENVE 5.6 SES DISC and 0.22W between HUNT 60 Limitless Aero Disc and ROVAL RAPIDE CLX. The testing sessions also found that the 60 Limitless Aero Disc outperforms some deeper, highly considered wheelsets on the market.

The Steering Moment analysis confirms the predictable and stable handling characteristics of the HUNT 60 Limitless Aero Disc, particularly at yaw angles greater than 10 degrees. For a number of the competitors wheelsets, significant changes in the steering moment curve gradient are observed in the region of 10 degrees yaw, which could result in unpredictable forces felt when encountering changes in wind direction at higher yaw angles such as cornering hard into the final turn of a sprint or turning onto Queen Ka’ahumanu Highway heading back into Kailua-Kona.

60 LAD Wind Tunnel Resuts

Figure 11: Drag [g] vs yaw angle [°] from final wind tunnel test November 2020 showing HUNT LIMITLESS 60 AERO DISC against competitors using a Schwalbe Pro One 28mm tire

60 LAD steering moment vs yaw angle

Figure 12: Steering Moment [Nm] vs yaw angle [°] from final wind tunnel test August 2020 showing HUNT LIMITLESS 60 AERO DISC against competitors using a Schwalbe Pro One 25mm tire

Figure 13: Steering Moment [Nm] vs yaw angle [°] from final wind tunnel test November 2020 showing HUNT LIMITLESS 60 AERO DISC against competitors using a Schwalbe Pro One 28mm tire

Cross Wind Stability

Many riders are familiar with the unsettling feeling of turning onto an unprotected road and immediately getting hit with a strong gust of wind; your heart skips a beat for half a second and you grip the bars a little tighter as you regain your confidence. With the development of the 60 Limitless Aero Disc, HUNT set out to make a wheelset that could have smooth and consistent airflow around the rim when you need it most.

As first explored in the testing of the 42 Limitless Gravel Disc, HUNT monitors various elements of aerodynamic performance, including side forces that act on the rims, and the effect those forces have on the steering moment. As with our previous projects, our wheels are tested through a range of effective yaw angles between negative 20 degrees and positive 20 degrees.

Concluded in the white paper attached, the steering moment analysis on the 60 Limitless Aero Disc and its closest competitors confirms predictable and stable handling characteristics. Most notably when the yaw angles are greater than 10 degrees. In the analysis, one can see that there are significant changes in the steering moment curve gradient when in the region of 10 degrees yaw, which could result in unpredictable forces felt when encountering changes in wind direction at higher yaw angles. These changes in wind direction occur numerous times when riding through a city, as wind constantly changes in direction and magnitude as it is pushed up, around and down off of buildings resulting in often chaotic wind flow.

Read Less

Key Features

We see wheels as a system, not a single component

  • Wind Tunnel proven to offer competitive aerodynamic drag among tested wheelsets among similar depth, offering the rider up to .4 Watt savings over renowned competitors.
  • Rims | Designed by HUNT Product Engineering Manager, Luisa Grappone (MSc Aerospace Engineering), HUNT Limitless Technology delivers industry-leading cross wind stability verified by smooth steering moment data proven in wind tunnel testing. 21mm internal and 34mm external widths, and a 60mm profile.
  • Bearings | Featuring CeramicSpeed's world-renowned, low-friction bearings. With CeramicSpeed bearings in your hubs, tests show that you’ll save between 6–9 watts, compared to using standard bearings. As chosen by top athletes and teams around the world.
  • Tires| Designed around a 21mm internal rim width optimised aerodynamically for 25-28c tires, these will work with any tire up to 50c. Feature a hooked tire retention design for safety, fully ETRTO-compliant and tubeless-ready. Work excellently with both clincher and tubeless-ready tires.

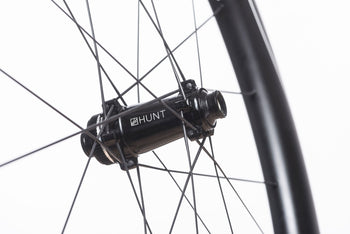

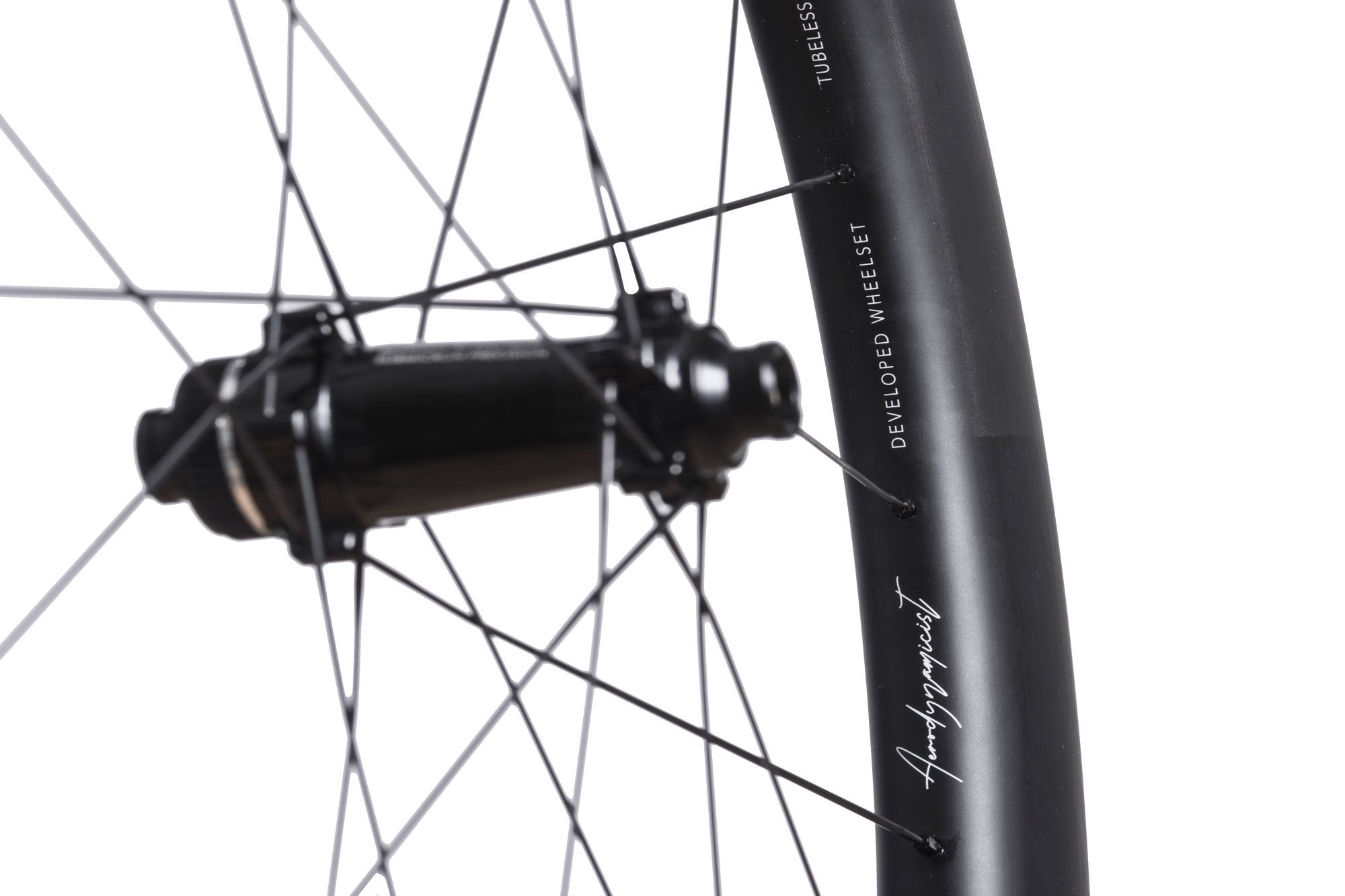

  • FastEngage 7.5 Hubs | SPRINT straight-pull centre-lock hubs, boasting an engagement rate of just 7.5° owing to the leaf-sprung, multi-point pawls and 48 ratchets in the hub shell.
  • Elliptical Wing Spokes | Pillar Wing spokes with aerofoil profile. Tested and proven to provide aerodynamic advantage over flat or bladed options both from Pillar and other competitors.
  • Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
  • Weight | 1669g

Please note: If you require a 6 bolt adaptor you can purchase separately here

The Experts' View

BikeRadar LogoVeloNews LogoTriathlete Logo Cyclist 4.5/5 Star review logo Cycling News 4.5/5 Star review logo

Full Specs

  • Rims

    • Wind tunnel tested, aerodynamically optimised for 25-28c tires
    • Disc-specific tubeless-ready profile
    • H-lock bead-seat up-kicks for easy and secure tubeless installation
    • Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
    • 34mm outer and 21mm inner width
    • 60mm depth
    • Matt black base finished with matt white contrasting graphics.
  • Spokes

    • Pillar Wing 20 with Aerofoil profile
    • 20 front and 24 rear laced 2 cross.
    • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
    • Straight-pull for excellent torsional strength and direct power transfer
    • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
    • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
    • Black stainless treatment
  • Nipples

    • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
    • 16mm length with washer for a strong connection to the spoke added durability.
    • 14 gauge.
    • Black anodized finish.
  • Tires Info

    • Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. 100 psi is more than enough for any rider on road. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
    • Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
    • Please do not exceed the maximum pressure stated on your tire.
    • Suitable for tires from 23mm up to 50mm wide.
    • Suitable tubeless road, gravel and CX tires are available from a huge range of companies.
  • Axle Size

    • These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.
  • Front Hub

    • All existing road/CX disc front axle standards are available including:
      • Quick Release (skewers included)
      • 12mm Bolt Thru
    • All axle adapters are also available separately.
    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
    • Polished anodized black finish with laser graphics.
  • Rear Hub

    • We fit the axles you need, just complete the simple form shown after checkout - all existing road/CX disc rear axle standards are available including:
      • Quick Release (Quick release skewers included)
      • 12x142 Bolt Thru
      • 12x135 Bolt Thru (uncommon)
      • 10x135 Bolt Thru (uncommon)
    • All axle adapters are also available separately.
    • 7075-T6 heat-treated aluminium alloy freehub body.
    • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
    • 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
    • All freehub standards accounted for, including:
      • Shimano/SRAM
      • Campagnolo
      • SRAM XD Driver
      • SRAM XDR Driver
    • Hunt Race Season Disc straight-pull super-light alloy.
    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
    • Polished anodized black finish with laser graphics.
  • Bearings

      • Industry leading CeramicSpeed hybrid ceramic bearings
      • 3 to 5 times longer lasting than other ceramic bearings on the market and 10 times more than standard steel bearings.
      • CeramicSpeed bearing balls are of the highest quality Grade 3 Silicon Nitride, featuring the highest achievable surface finish and roundness. 15% harder, take 99% higher loads and are more than 100% smoother than other ceramic balls typically seen in the market. The smoothness and the hardness of the CeramicSpeed Balls are unique.
      • 6 year warranty

    OR

    • High-grade Japanese EZO bearings.
    • Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.
    • Incredibly fast rolling.
  • Warranty, HUNT Rolling Road Tests & Weight Limits

    A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

    All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 240lbs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 178lbs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

    60 Day Ride Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not.



    Tubeless Tire Options

    We can supply tubeless tires (including sealant) with your wheels which are also designed to work excellently with clincher tires and tubes.

    Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. 100 psi is more than enough for any rider on road. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams. Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. Please do not exceed the maximum pressure stated on your tire.

    These are only some of the options you can purchase with your wheels. To see the full range, click here

    Schwalbe Pro One Tubeless Tyres

    Schwalbe Pro One Tubeless tires - 28mm

    The Schwalbe Tubeless road tires consistently win plaudits from journalists and customers alike. We have been testing them for a long time and have been very impressed. The One Pro's are Schwalbe's top of the range tires and feature their triple compound tread so you get extremely low rolling-resistance combined with excellent grip and durability.

    Schwalbe G One Tubeless Tyres

    Schwalbe G One Speed Tubeless tires - 30mm

    Unleashing profile and breathtakingly fast - especially when large volume counts. As a 30mm wide road race version with V-Guard, G-One Speed is a tire for the real tough jobs. You can ride it as a handmade tubular or with the most modern tubeless easy technology. But it is also a guarantee for maximum speed in the extra-wide 60mm execution - of course, not only at the fascinating beach races on Holland’s coasts. The new G-One Speed is an evolution of the former S-One and Big One.

    Reviews

    Bike Magazine and Website Experts' Views

    Bike Radar Logo

    Bike Radar 4/5 Review

    "The build quality is excellent and they feel taut and responsive, especially through corners on fast descents."

    Velo-News-4-Star-review

    VeloNews 4/5 Review

    "The Hunt 60 Limitless Aero wheels are at the upper end of medium-depth do-it-all wheels."

    cyclingnews-logo-review 4.5/5 Star review Logo

    Cycling News 4.5/5 review

    "The Hunt 60 Limitless Aero Disc wheels show what's possible when you use the latest technology to do something outside the box"

    Cyclist 4.5/5 Star review Logo

    Cyclist Magazine 4.5/5 review

    "The result of Hunt’s efforts is a wheelset that feels really fast on the flat and sprightly too when climbing."

    Triathlete Logo

    Triathlete

    "It's not enough to simply have a deep carbon wheel if you can't handle it comfortably in an aero position."

    We've got your back

    Rider Experience Support

    Unmatched rider support, 7 days a week. For quick and immediate access to all the help you need, try our Live Chat. Our team consists of real bike riders who are fully equipped to answer any questions and help out. See Contact Us page for more details.

    Spares Available

    Any spares for our wheelsets can be found on our website. If you assistance, contact us and we can help you.

    Next Day Shipping

    As enthusiastic cyclists, we know you want your bike gear so we make sure all in-stock items are packed and dispatched within 1 working day.* As soon as your order is dispatched you’ll receive an email notification.

    *Subject to stock levels & cleared payment

    60 Day Ride and Return

    We are so confident that you'll be happy with you HUNT wheels that we offer a full 60 day to ride them & return for a full refund (or product swap). Click here to learn more.

    ABOUT HUNT _

    Hunt Bike Wheels are a team of talented, passionate riders with a wealth of industry experience, and set out to bring you the latest, most practical, forward-thinking technology in all things round.

    Our mission is to serve devoted riders with the highest performing products, backed by best-in-class rider support.

    All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
