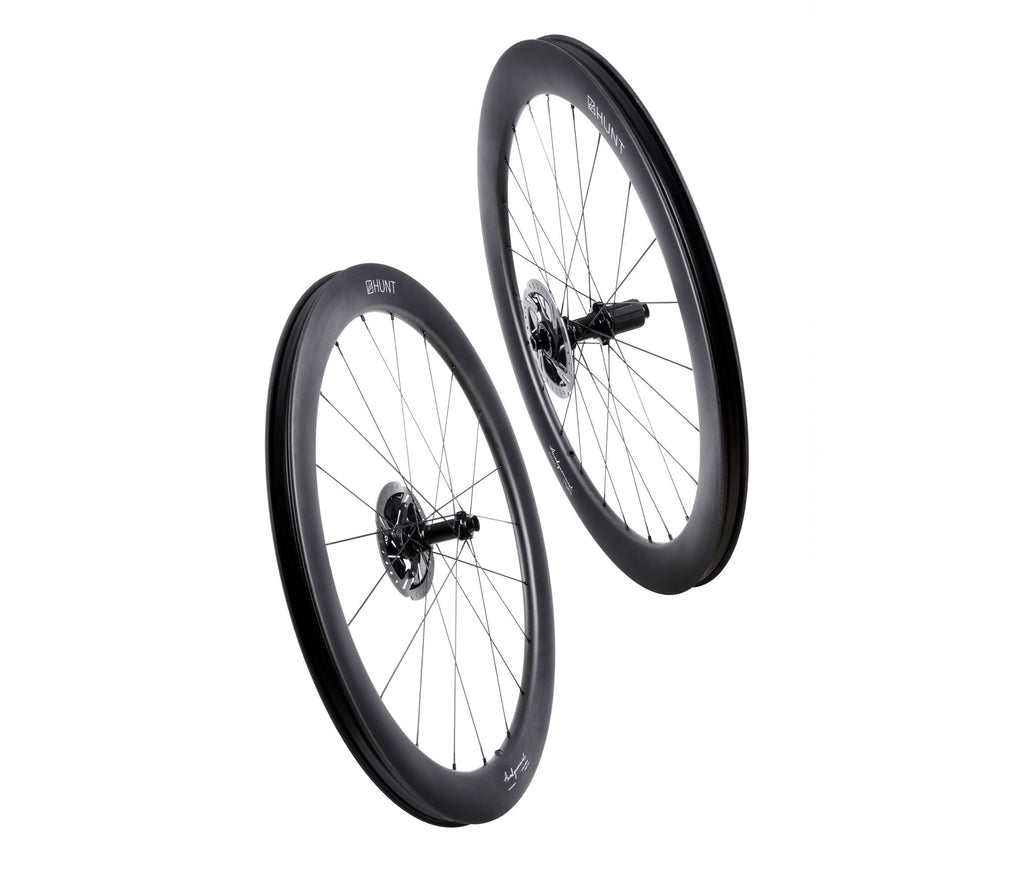

HUNT 54_58 Aerodynamicist Carbon Disc Wheelset

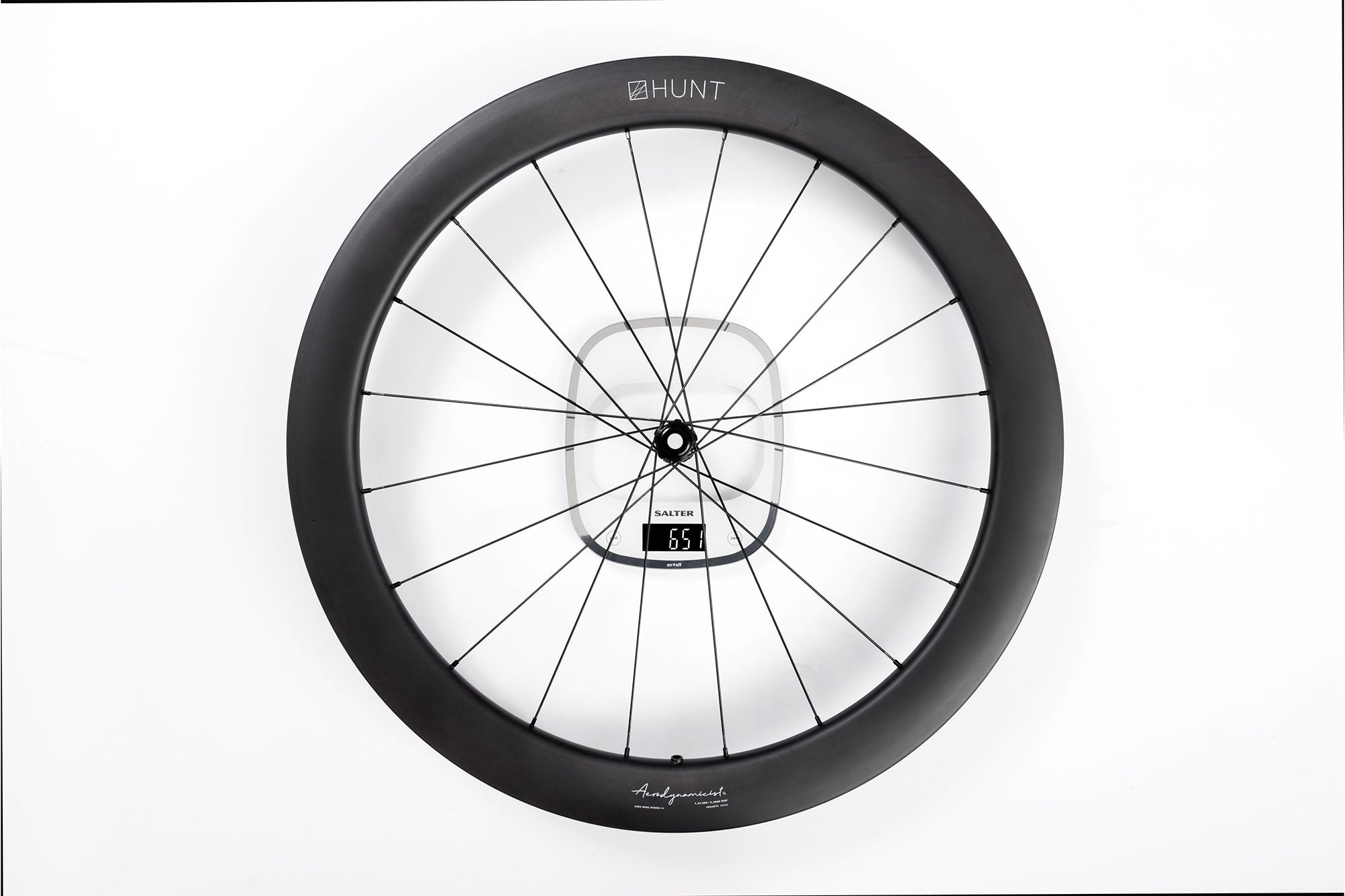

• 54.5mm Deep front profile with a 31.7mm external width provides low aerodynamic drag with wider 28mm tires.

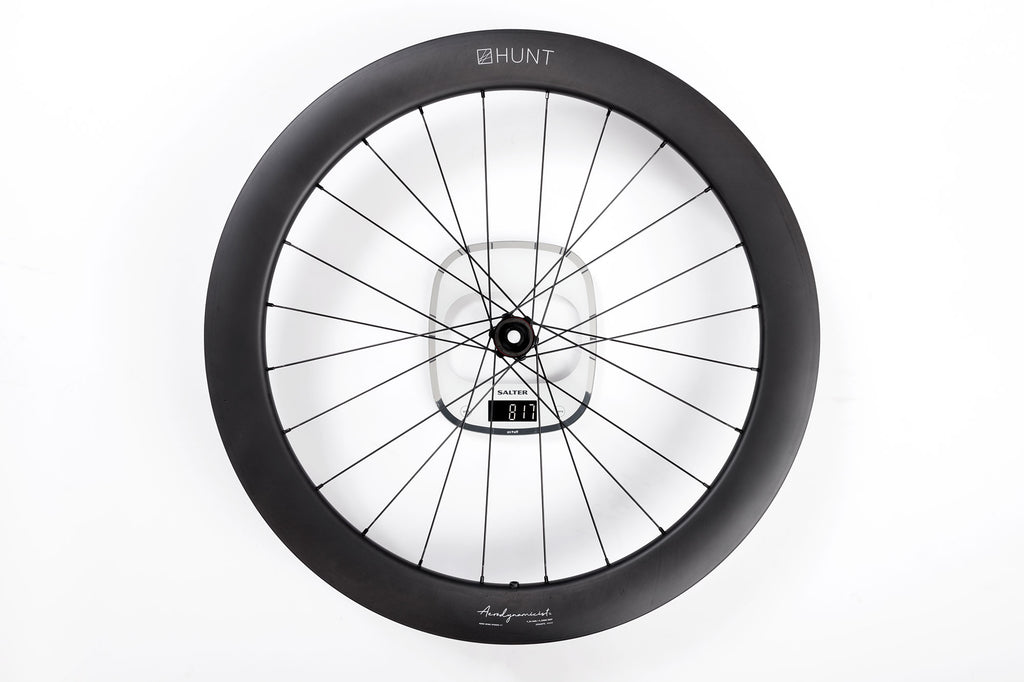

• 58mm deep rear profile with a 30mm external width to reduce weight in turbulent air.

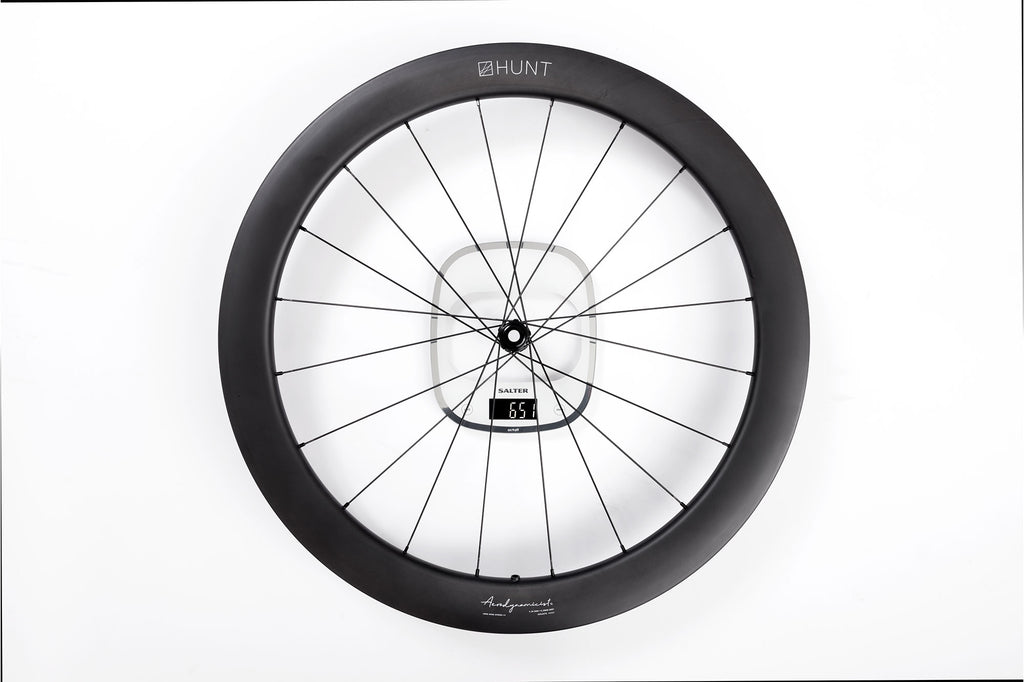

• Lightweight rim layup strategy using T800 unidirectional carbon fiber with 3K weave re-enforced spoke holes for ultimate wheelset performance.
• Manufactured from H_CYCLO rim technology to allow the rims to be ready to be recycled at the end of their life.

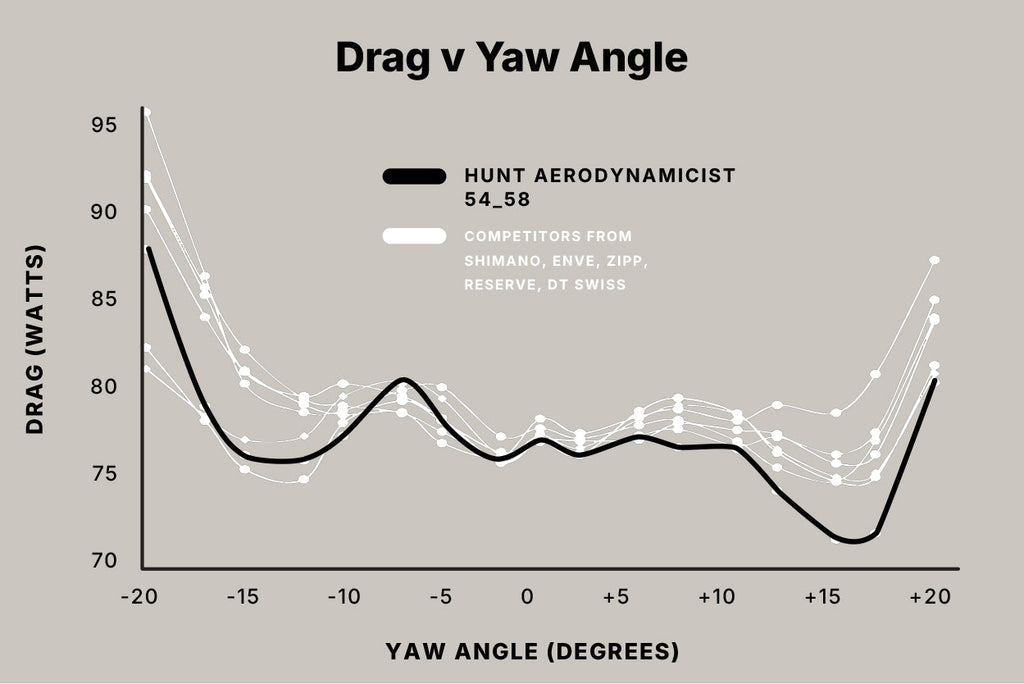

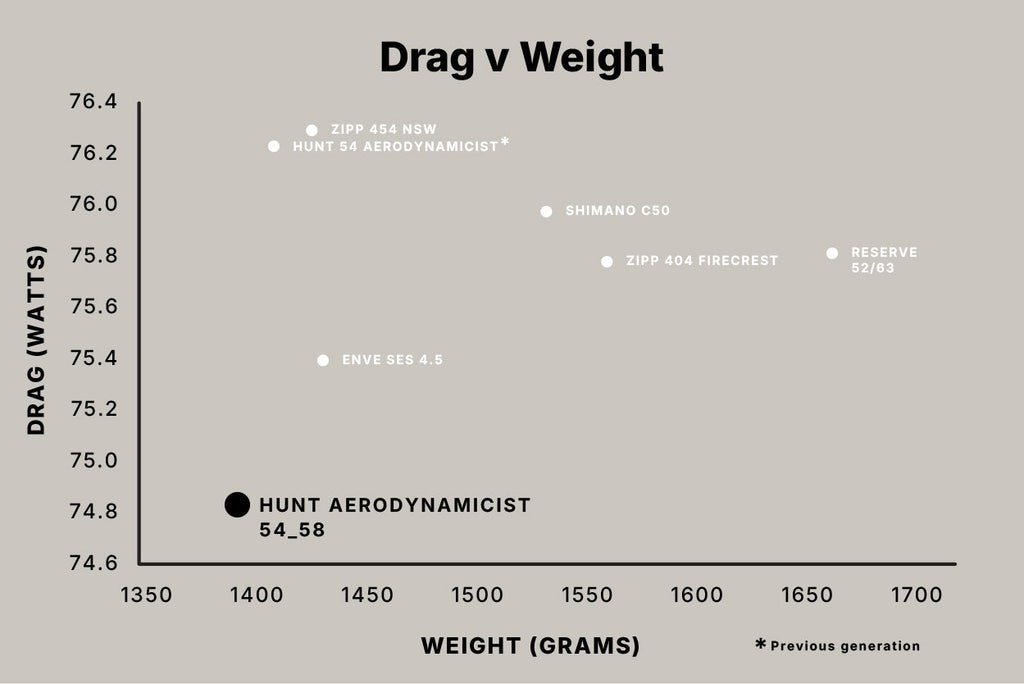

• Designed by HUNT’s in-house Engineering Team using Computational Fluid Dynamics (CFD) and then validated using wind tunnel testing.
• Aerodynamically optimized for a 28c tire.
• The wide 22mm internal width is provides good tire support and volume for excellent grip and low rolling resistance.
• Hooked 22mm internal profile allows a wide range of tires from 25mm-50mm to be fitted including tubeless or clincher tires in-line with ETRTO guidelines.
• H-Lock bead seat up-kick for secure tire fitment.

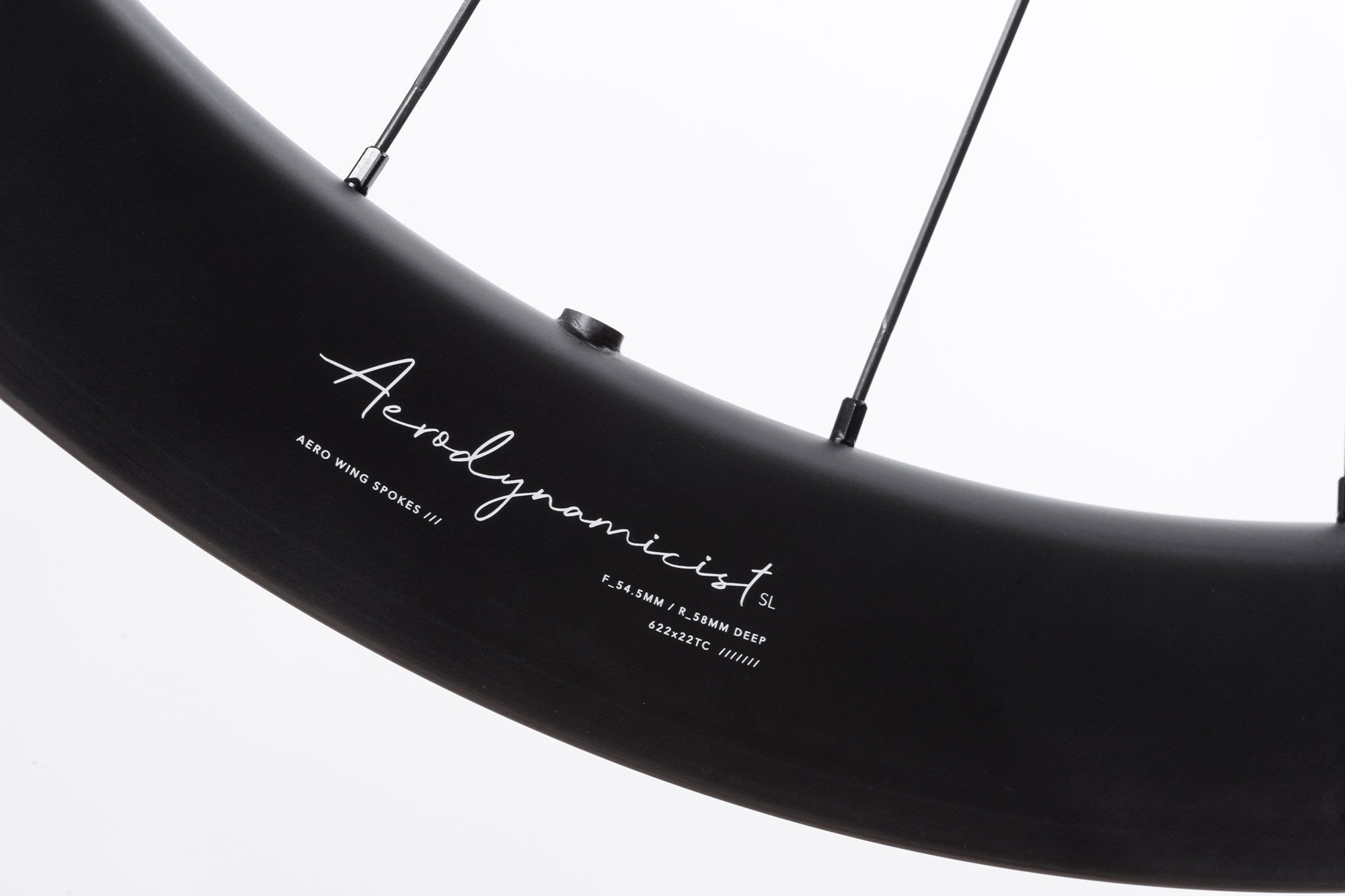

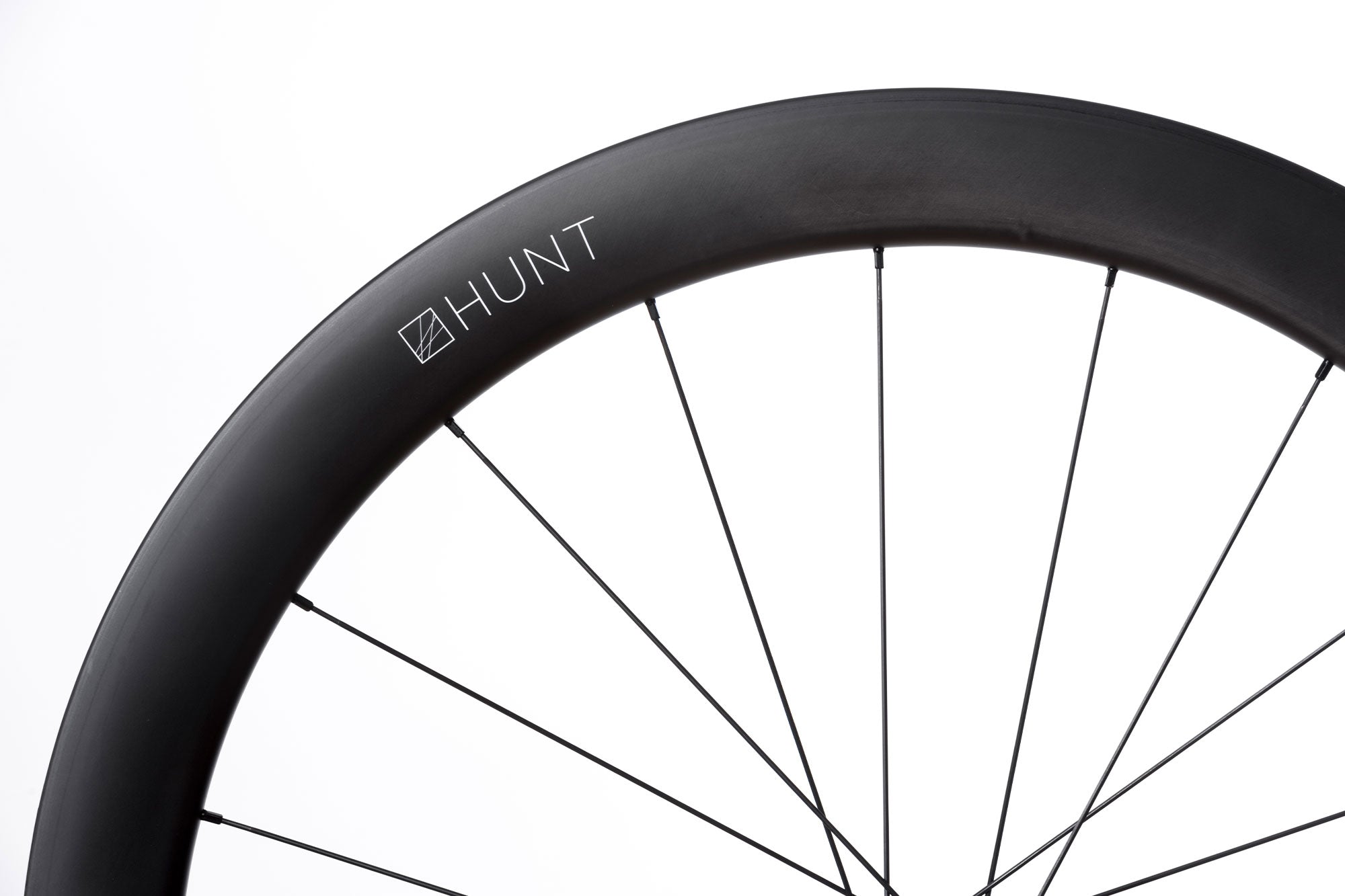

• UD rim finish with matte white decals.

• 20 Front | 24 Rear (2 cross both sides)

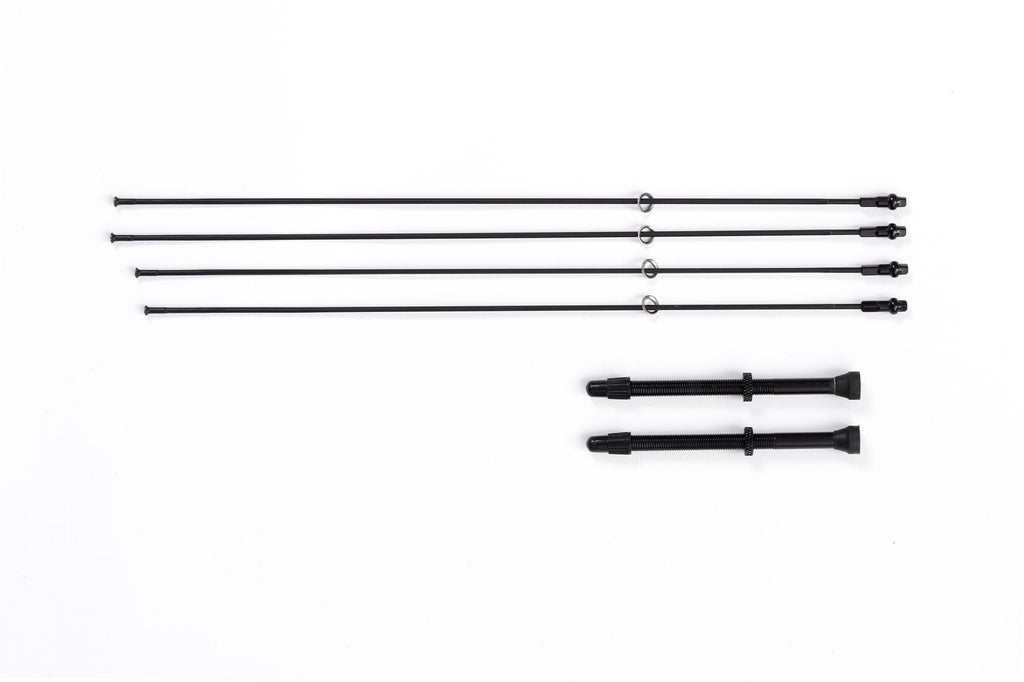

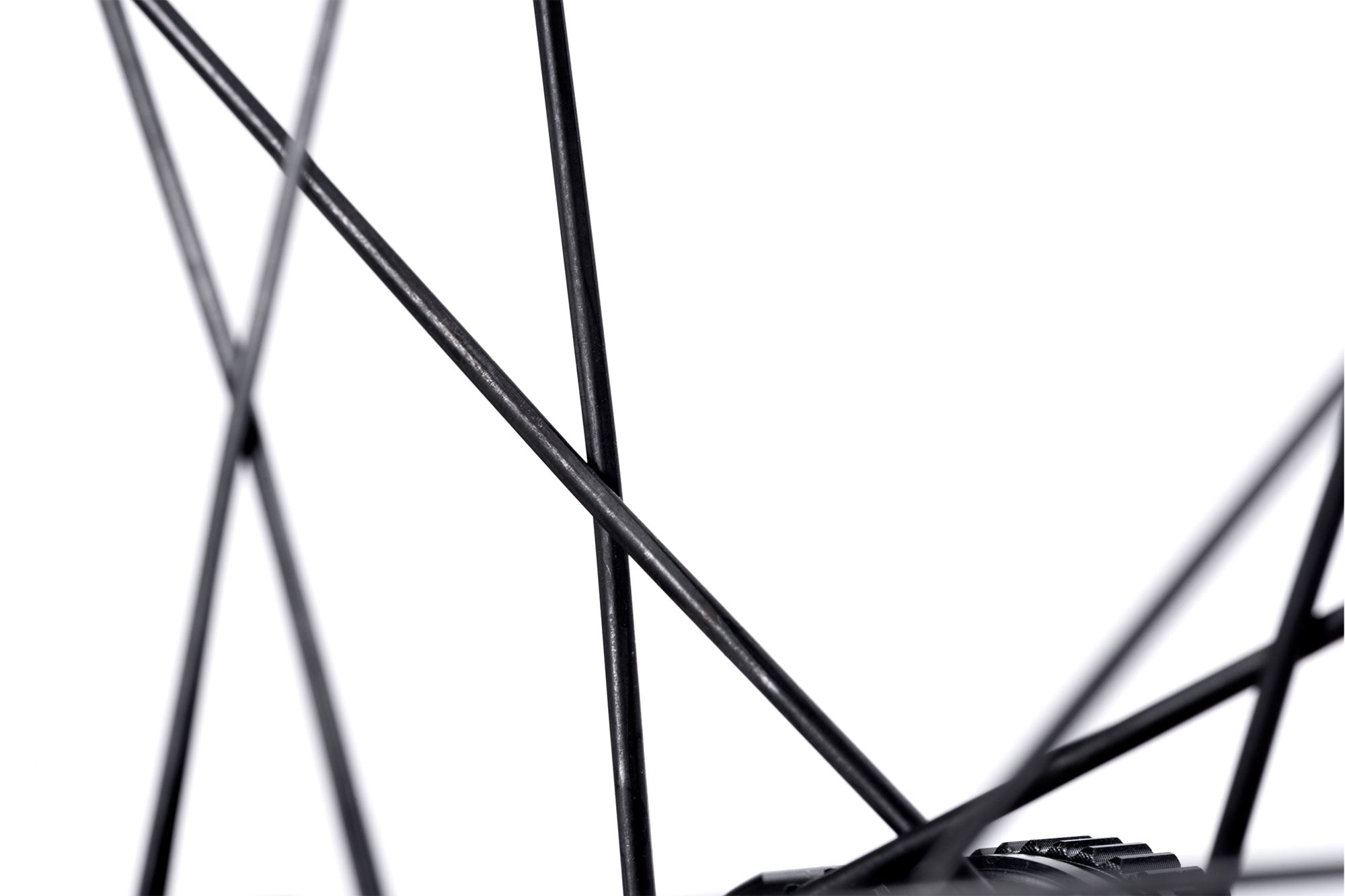

• Pillar Wing 20 with aerofoil profile to reduce aero drag | triple butted 2.2/0.95-2.0mm to increase strength.
• Straight-pull excellent torsional strength and direct power transfer.
• Cold drawn from high grade T302 (18/10) stainless steel by Sandvik Sweden.
• Patented Pillar Spoke Reinforcement, additional butting near the head of the spoke to increase strength in this high-stress area.
• Black stainless treatment.

• Square body for external adjustment and square head for easy adjustment and tensioning.
• Alloy material to reduce rotational mass.
• 16mm length with washer for a strong connection to the rim without causing high load at the spoke hole.
• 14 gauge.
• Black anodized finish.

• Forged and CNC’d 6066-T6 heat treated aluminium alloy body.
• 7075-T6 aluminium alloy axle.
• Polished anodised black finish with laser graphics.
• Center-lock disc mount. If you require a 6-bolt adaptor you can purchase it separately here.

• H_Ratchet 40t, dual sided ratchet rings, offer 9˚ of engagement.
• Floating ratchet rings are contained as a cassette, for easy servicing and maintenance.
• H_Ceramik freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage.
• All freehub standards accounted for.
• Forged and CNC’d 6066-T6 heat treated aluminium alloy body.
• 7075-T6 aluminium alloy axle for increased stiffness.
• Polished anodised black finish with laser graphics.
• Center-lock disc mount. If you require a 6-bolt adaptor you can purchase separately here.

• Super smooth precision Enduro™ ABEC 5 stainless steel cartridge bearings. Enduro™ ABEC 5 bearings are designed specifically for bicycle applications as they offer the deepest grooves and largest balls possible in every size to increase bearing strength and durability.
• LLU dual full-contact seals to reduce bearing ingress from dirt and liquids for longer service life.
• Cartridge design for convenient servicing.

• HUNT recommends a 25-35mm tires for best performance, tire widths between 25mm and 50mm are also safe to use.
• Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post about this, read here.
• Tubeless-ready for lower weight and rolling resistance. Also designed to work excellently with standard clincher tires and inner tubes.
• You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.

These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:

• Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
• Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

*Shimano Microspline and Campagnolo CN3W is only available in 12x142mm

If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right.

Please note; this form is shown after you have completed your order.
