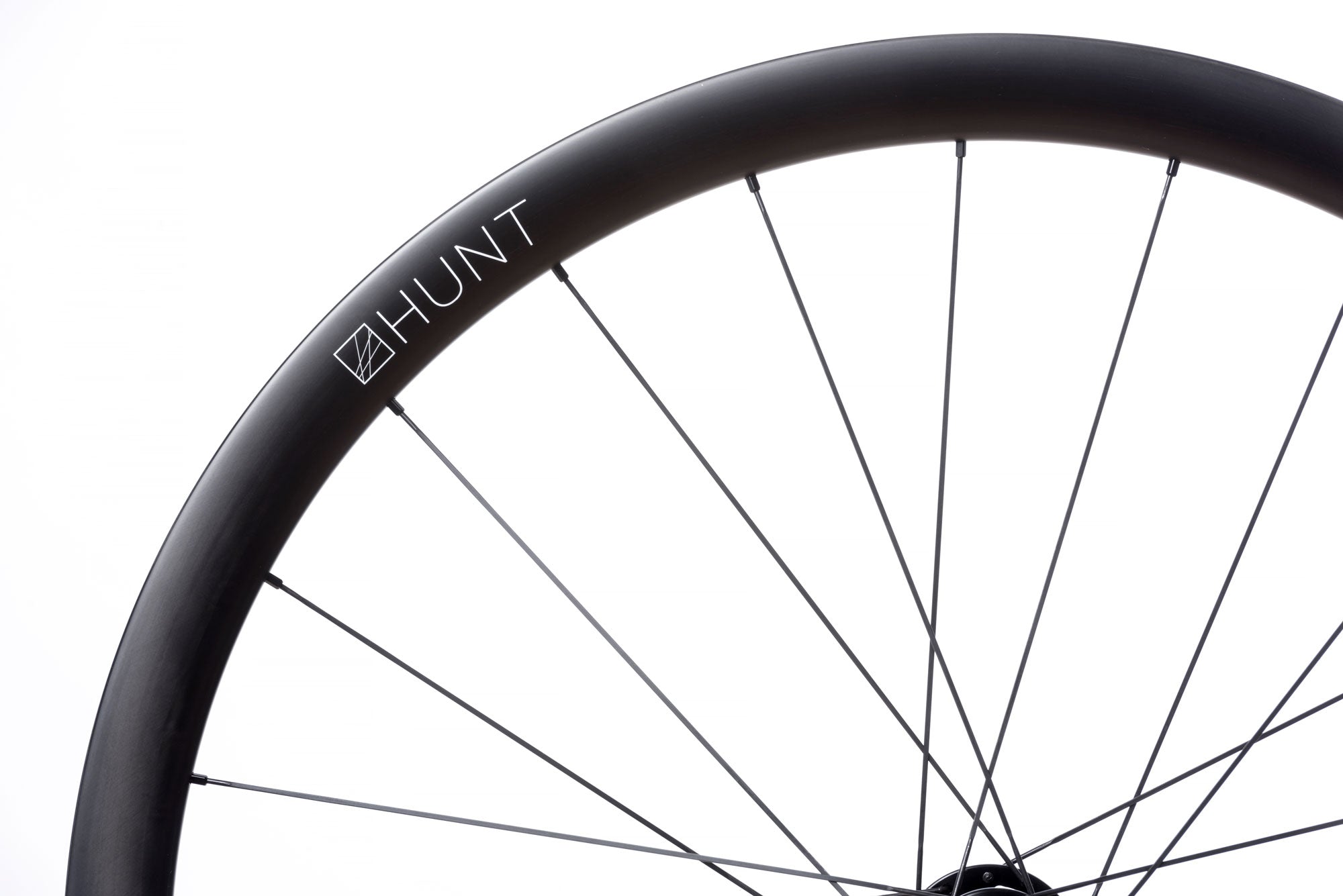

<h1>Rims</h1><i>A strong and super-lightweight hookless rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The wide aero profile delivers excellent handling and speed. The evolution of disc-specific construction has allowed massive weight savings over equivalent rim-brake rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on it's primary roles of supporting the tyre and spoke forces.</i>
<h1>Spokes</h1><i>We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter and provide a greater degree of elasticity to maintain tensions and add fatigue resistance. These PSR J-bend spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all Hunt wheels are hand-built.</i>
<h1>Bearings</h1><i>The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by EZO Japan.</i>
<h1>FREEHUB BODY</h1><i> Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we've developed the H_CERAMIK coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>Rim Surface</h1><i>V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.</i>

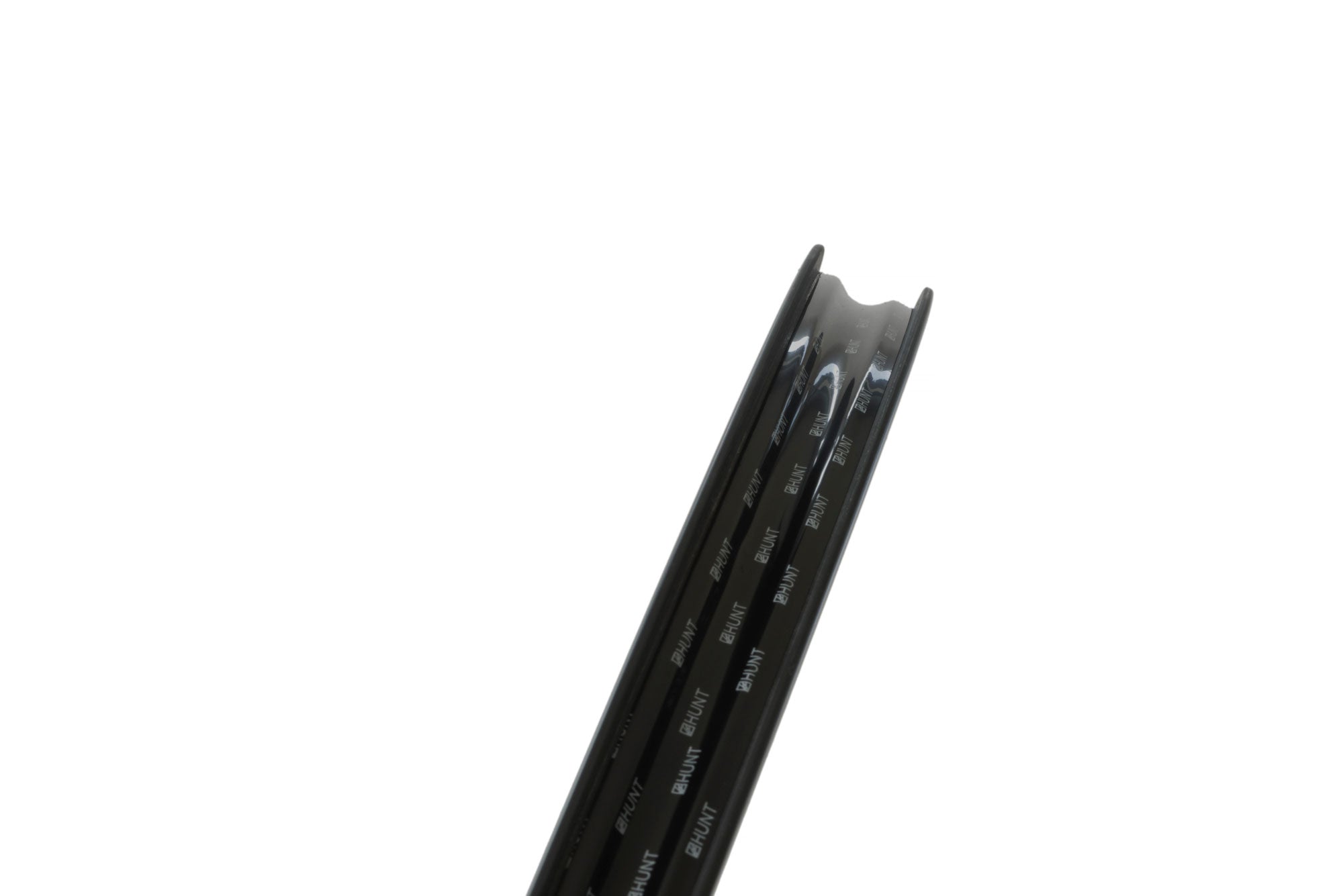

<h1>Rim Bed</h1><i><em>H-LOCK</em> is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The <em>H_LOCK</em> profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
<h1>Hookless Technology</h1><i>Hookless rims are manufactured without bead hooks, the inward protruding edges at the top of the rim bed that help to retain clincher tyres under pressure. The internal rim walls of a hookless rim are flat and straight</i>
<h1>Hookless Rims</h1><i>The key benefits of hookless can be distilled down to the following: <ul><li> Stronger rim construction</li><li>Lighter weight rims</li><li>Slightly more aerodynamic profile of the global system (rim and tyre combined)</li><li>Lower manufacturing costs (which benefit the rider if they are passed on) and less waste generated during production</li></ul></i>
<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout.</i>
<h1>Team Velocio Exploro</h1><i>We are honoured to support Velocio // Exploro with the 35 Gravel X-Wide Wheelset. We can't wait to see the ladies kick up some dust in their off-road season.</i>
<h1>DREAM BUILD </h1><i>Team Velocio//Exploro's 3T with 35 Carbon Gravel X-Wide</i>
HUNT 35 Carbon Gravel X-Wide Hookless Wheelset
HUNT 35 Carbon Gravel X-Wide Hookless Wheelset
<h1>Rims</h1><i>A strong and super-lightweight hookless rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The wide aero profile delivers excellent handling and speed. The evolution of disc-specific construction has allowed massive weight savings over equivalent rim-brake rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on it's primary roles of supporting the tyre and spoke forces.</i>
<h1>Spokes</h1><i>We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter and provide a greater degree of elasticity to maintain tensions and add fatigue resistance. These PSR J-bend spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all Hunt wheels are hand-built.</i>
<h1>Bearings</h1><i>The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by EZO Japan.</i>
<h1>FREEHUB BODY</h1><i> Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we've developed the H_CERAMIK coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>Rim Surface</h1><i>V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.</i>
<h1>Rim Bed</h1><i><em>H-LOCK</em> is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The <em>H_LOCK</em> profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
<h1>Hookless Technology</h1><i>Hookless rims are manufactured without bead hooks, the inward protruding edges at the top of the rim bed that help to retain clincher tyres under pressure. The internal rim walls of a hookless rim are flat and straight</i>
<h1>Hookless Rims</h1><i>The key benefits of hookless can be distilled down to the following: <ul><li> Stronger rim construction</li><li>Lighter weight rims</li><li>Slightly more aerodynamic profile of the global system (rim and tyre combined)</li><li>Lower manufacturing costs (which benefit the rider if they are passed on) and less waste generated during production</li></ul></i>
<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout.</i>
<h1>Team Velocio Exploro</h1><i>We are honoured to support Velocio // Exploro with the 35 Gravel X-Wide Wheelset. We can't wait to see the ladies kick up some dust in their off-road season.</i>
<h1>DREAM BUILD </h1><i>Team Velocio//Exploro's 3T with 35 Carbon Gravel X-Wide</i>

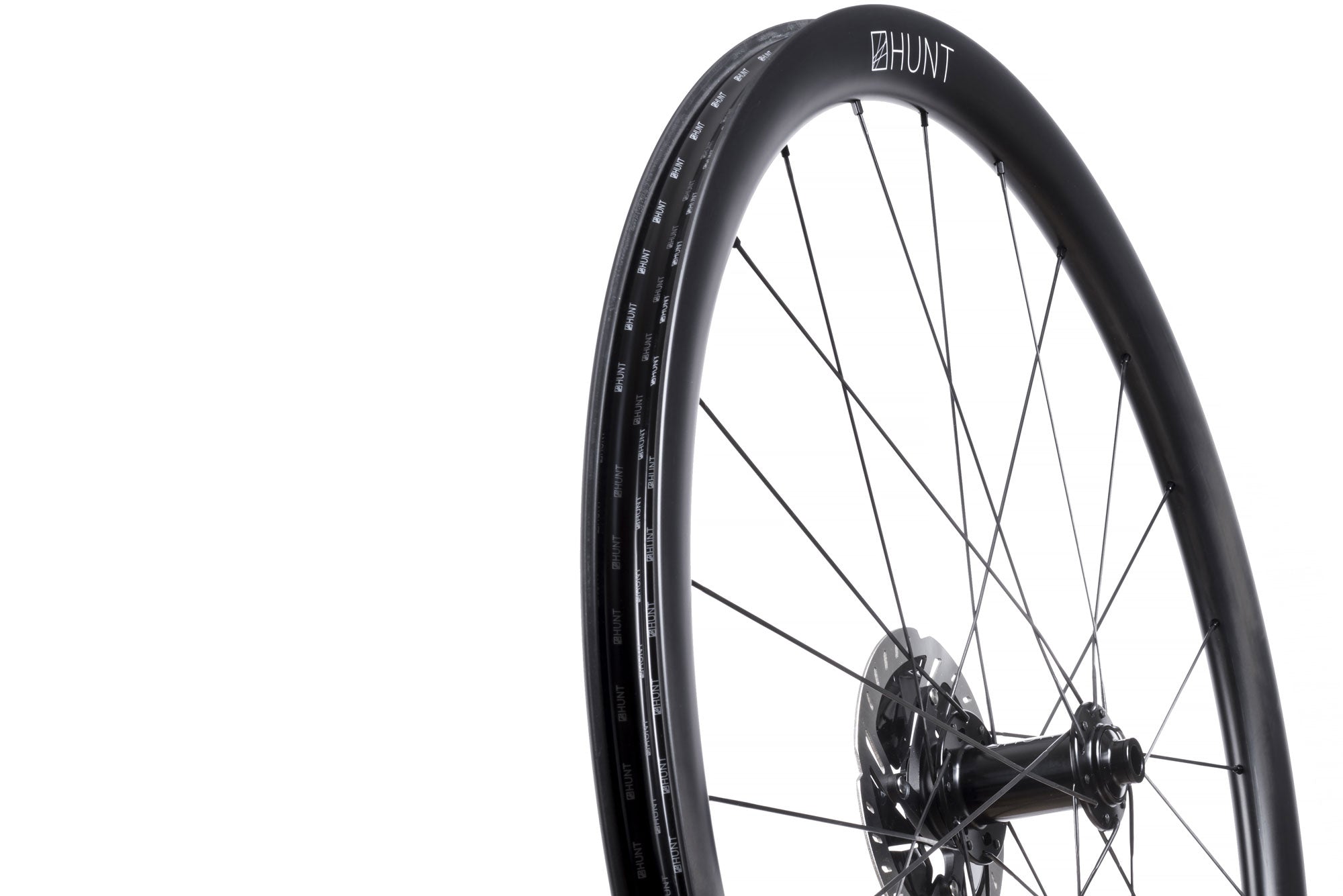

HUNT 35 Carbon Gravel Hookless X-Wide Wheelset

1465g Depth Width ext Width int size
35 mm 31 mm 25 mm 700

Introducing the Carbon Gravel X-Wide: Carry speed over the seriously rough stuff with confidence on these super-wide rims optimised for wide tyres. The 35mm depth was selected for stiffness and burly strength, knowing that you’ll likely be spending plenty of miles off-road.

Tyre size: Optimised for 40mm tyres; work well with 29mm up to 64mm.

More details Right

The Purpose _

<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout.</i>

The Purpose _

Introducing the Carbon Gravel X-Wide: Carry speed over the seriously rough stuff with confidence on these super-wide rims optimised for wide tyres. The 35mm depth was selected for stiffness and burly strength, knowing that you’ll likely be spending plenty of miles off-road.

KEY FEATURES_

Spokes

Pillar PSR reinforced spokes with Black for increased wear and corrosion resistance.

Hookless/Straight Side-Wall

35mm-deep and 31mm-wide external rim profile, featuring a hookless/straight-sidewall and ETRTO-compliant tubeless rim, designed for gravel tubeless tire compatibility.

Hubs

HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding. 5 degree RapidEngage 6-pawl freehub, with H_CERAMIK coating for enhanced durability. Centre-lock disc mount.

TECHNOLOGY _

Featuring the same 5 degree RapidEngage 6-pawl hub as our 30 Carbon Gravel (inclusive of H_CERAMIK freehub) this wheelset offers riders a more burly option for hardcore gravel/drop-bar off-road riding and racing! Benefitting further from a 24 front and 28 rear spoke count (for up to 120kg riders), the result is a strong gravel/bike-packing wheelset for the heaviest of duties! Hit the trails, HARD!

<h1>Rim Surface</h1><i>V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.</i>

Full Specs _

Rims
700c Hookless, tubeless-ready asymmetric profile. (Click here to find out more about hookless rim technology). H_LOCK bead-seat up-kicks for easy and secure tubeless installation Unidirectional T24/30 carbon fiber, with 3K weave re-enforced spoke holes 31mm external and 25mm internal width 35mm depth Matt black base finished with matt white contrasting graphics.
  • 700c Hookless, tubeless-ready asymmetric profile. (Click here to find out more about hookless rim technology).
  • H_LOCK bead-seat up-kicks for easy and secure tubeless installation
  • Unidirectional T24/30 carbon fiber, with 3K weave re-enforced spoke holes
  • 31mm external and 25mm internal width
  • 35mm depth
  • Matt black base finished with matt white contrasting graphics.
Tires Info
HUNT recommends a 40mm tire for best performance, tire widths between 29mm and 64mm are also safe to use.   Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  Only use tires marked as compatible with hookless (TSS) rims.  You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
  • HUNT recommends a 40mm tire for best performance, tire widths between 29mm and 64mm are also safe to use.
  • Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • Only use tires marked as compatible with hookless (TSS) rims.
  • You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
Spokes
24 front and 28 rear, laced 2-cross. Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2. J-Bend for ease of replacement. Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area. Black stainless
  • 24 front and 28 rear, laced 2-cross.
  • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
  • J-Bend for ease of replacement.
  • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
  • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
  • Black stainless

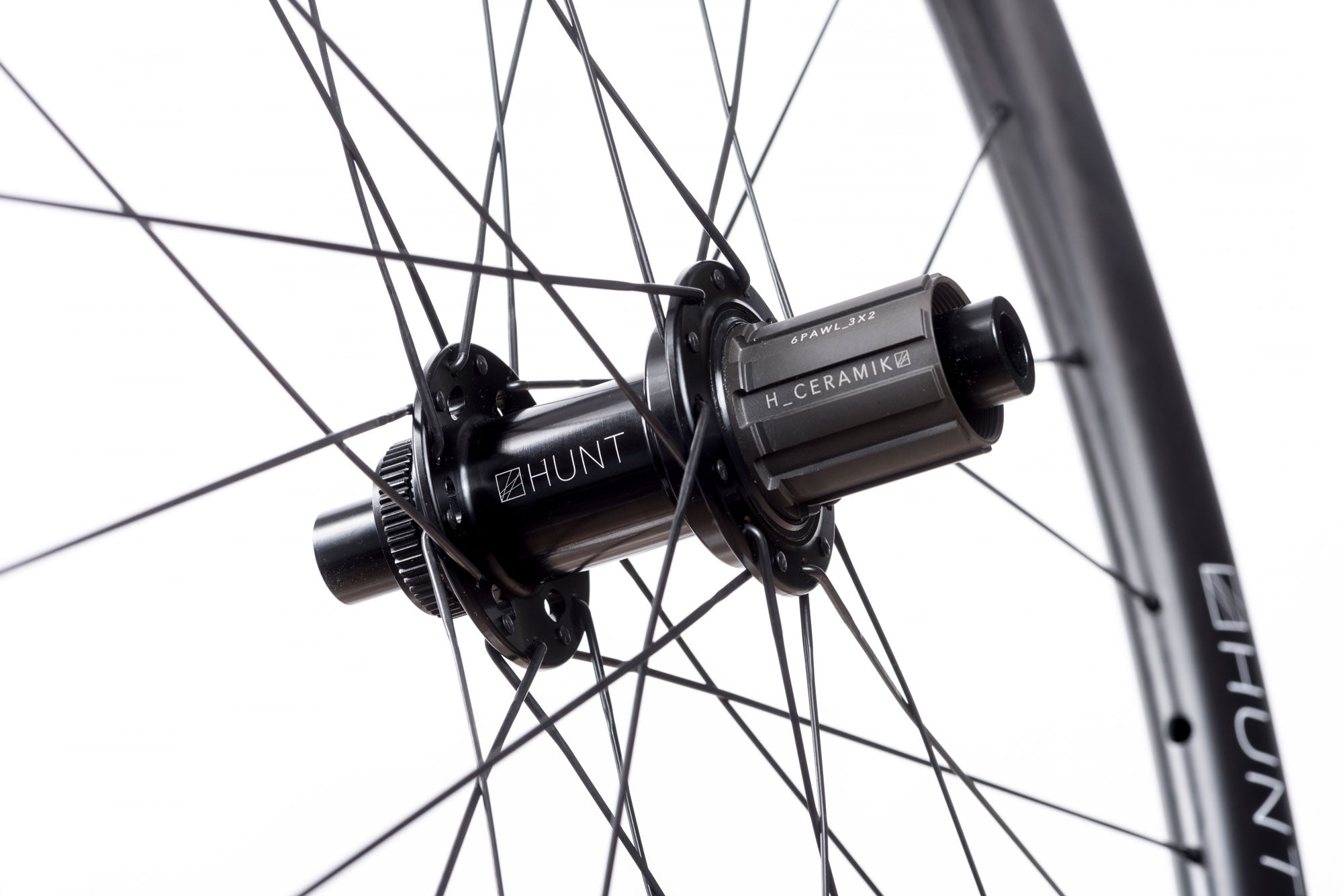

Rear Hub
7075-T6 heat-treated aluminum alloy freehub body. H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. 6 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees All freehub standards accounted for. Hunt Race Season Disc straight-pull super-light alloy. Forged and CNC’d 6061-T6 heat treated aluminum alloy body. 7075-T6 aluminum alloy axles. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here. Polished anodized black finish with laser graphics
  • 7075-T6 heat-treated aluminum alloy freehub body.
  • H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • 6 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
  • All freehub standards accounted for.
  • Hunt Race Season Disc straight-pull super-light alloy.
  • Forged and CNC’d 6061-T6 heat treated aluminum alloy body.
  • 7075-T6 aluminum alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
  • Polished anodized black finish with laser graphics
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. 16mm length with washer for a strong connection to the spoke added durability. 14 gauge. Black anodized finish.
  • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
  • 16mm length with washer for a strong connection to the spoke added durability.
  • 14 gauge.
  • Black anodized finish.

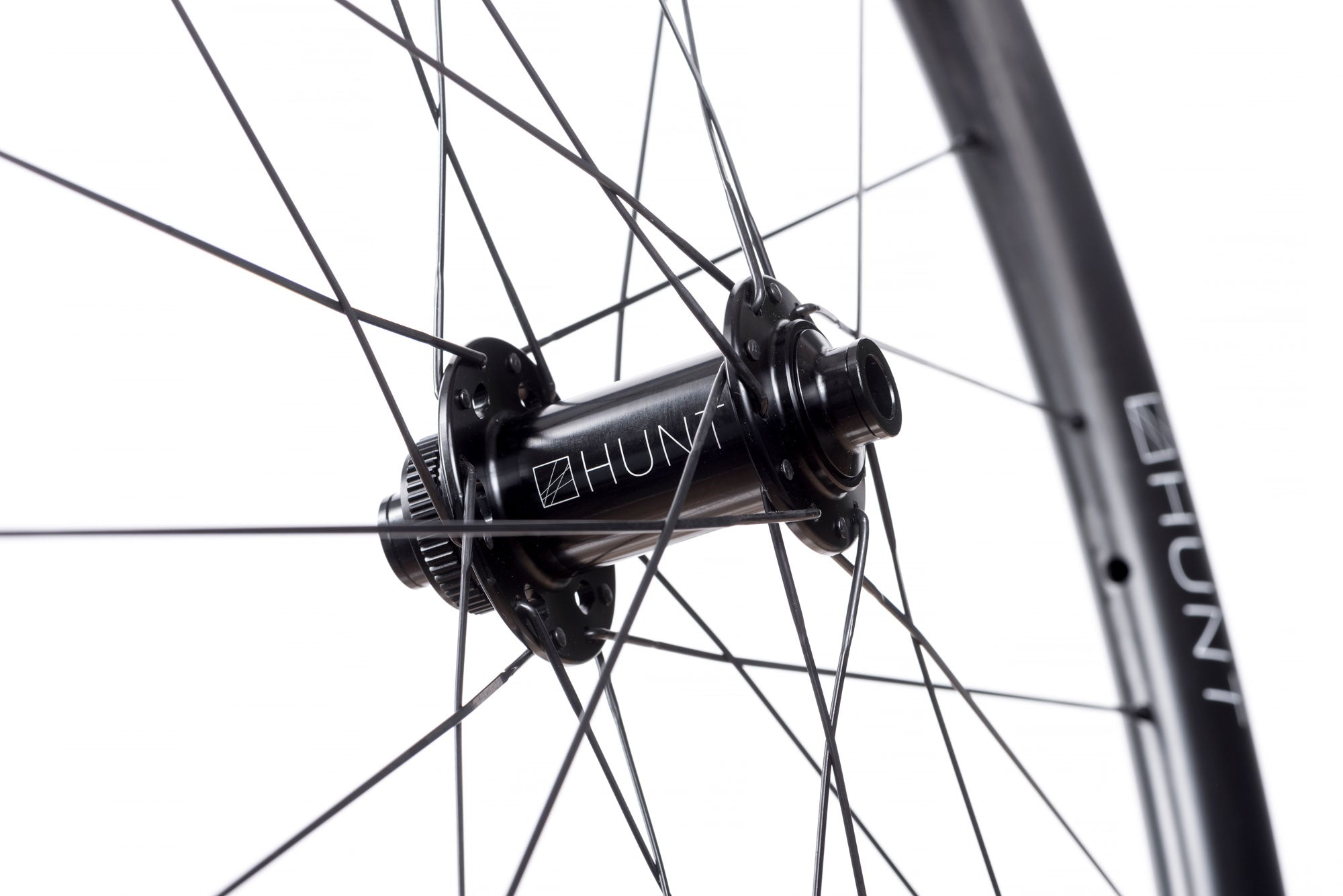

Front Hub
HUNT 4Season Disc designed for 4Season use with extra bearing shielding and sealing. Forged and CNC’d 6061-T6 heat treated aluminum alloy body. 7075-T6 aluminum alloy axles. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here. Polished anodized black finish with laser graphics.
  • HUNT 4Season Disc designed for 4Season use with extra bearing shielding and sealing.
  • Forged and CNC’d 6061-T6 heat treated aluminum alloy body.
  • 7075-T6 aluminum alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
  • Polished anodized black finish with laser graphics.
Bearings
Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather. Sealed cartridge replaceable units. Dual full-contact seals.
  • Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
  • Sealed cartridge replaceable units.
  • Dual full-contact seals.
Axle Sizes
Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.
  • Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
  • If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _
Rims

A strong and super-lightweight hookless rim featuring unidirectional T24/30 carbon fiber with 3K weave re-enforced spoke holes. The wide aero profile delivers excellent handling and speed. The evolution of disc-specific construction has allowed massive weight savings over equivalent rim-brake rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on it's primary roles of supporting the tire and spoke forces. V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.
Spokes

We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter and provide a greater degree of elasticity to maintain tensions and add fatigue resistance. These PSR J-bend spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all Hunt wheels are hand-built.

Hookless Technology

Hookless rims are manufactured without bead hooks, the inward protruding edges at the top of the rim bed that help to retain clincher tires under pressure. The internal rim walls of a hookless rim are flat and straight The key benefits of hookless can be distilled down to the following:

  • Stronger rim construction
  • Lighter weight rims
  • Slightly more aerodynamic profile of the global system (rim and tire combined)
  • Lower manufacturing costs (which benefit the rider if they are passed on) and less waste generated during production
Rim Bed

H-LOCK is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tires. The H_LOCK profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.
Freehub Body

Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we've developed the H_CERAMIK coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies.

What's in the box _

  • Spares spokes
  • Rim Tape fitted to wheels
  • 45mm Valves

WARRANTY_

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 145kg (system weight : total weight of fully kitted up rider, bike and luggage). If a rider is over 120kgs then an experienced bike mechanic should check the wheel regularly.

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
