HUNT x QVIST 40 Limitless Gravel Wheelset

1589g Depth Width ext Width int size
F40 / R41 mm F36 / R35 mm F27 / R26 mm 700

British aerodynamics engineering meets German precision hub manufacturing. We’ve joined forces with QVIST to craft a limited-edition batch of HUNT x QVIST 40 Limitless Gravel wheelsets. German-made QVIST double ratchet hubs offer near instant acceleration, hand-built in Germany with wide, light, wind-tunnel proven, front and rear-specific Limitless Gravel Aero rims.

Enhances aerodynamics for 40,45 and wider 50mm+ tires; works well with 35-60mm tires.

Which freehub do I need?
$1,999
Pre-Order Now. Shipping: Jul Wk 1Items are selected to ship from us in the week stated. Delivery time is 2-6 days*

We will ask for axle info after checkout.

More details Right

The Purpose _

The Purpose _

Wind tunnel-proven aerodynamic efficiency, engineered for gravel. Supercharged with QVIST’s unique near-instant engagement and the renowned durability of ratchet drive, ready to go anywhere—fast.

Born from a shared obsession with precision and rider-focused design, the HUNT x QVIST collaboration merges QVIST’s 3° engagement DUO double ratchet hub system with HUNT’s race-developed, front- and rear-specific gravel aero wheels. The result is a highly responsive, aerodynamically optimized wheel system built to elevate your fastest gravel adventures and endure the long haul.

With only 40 wheelsets available globally, each hand-built in Dresden, Germany, this is performance engineering in its rarest form.

KEY FEATURES_

Limited Edition

HUNT limited collaboration with QVIST: 40 sets available worldwide, hand-built in our Dresden facility, each featuring German-made QVIST DUO hub systems, uniquely laser-etched in HUNT-exclusive Dark Graphite colourway with custom rim graphics.

Instant Acceleration

QVIST’s patent-pending Double Ratchet System uses three alternating ratchet rings for 120-point, 3° engagement—delivering near-instant acceleration. Made in Germany from 7075-T6 aluminium with hardened steel 60-tooth ratchet rings for lasting strength.

Patented Limitless Width Aero Technology

HUNT Limitless Width Aero manufacturing process allows for a wider external rim shape while minimising material mass. Increased aerodynamic performance across a wider range of yaw angles, resulting in fast, stable rim profiles.

Adventure Ready Durability

Built to go further, our in-house team engineered to new gravel protocols beyond ISO standards—24/28 spokes boost load capacity, and thick 4.5mm bead hooks cut pinch flats while optimising comfort at low pressures.

TECHNOLOGY _

HUNT’s in-house engineering team invested two years developing and wind-tunnel validating front and rear rim profiles for the 40 Limitless Gravel to build on the aero efficiency benefits achieved by the category-leading previous generation Limitless Gravel wheels, while significantly reducing system weight and optimising rim shapes around wider modern gravel tires.

Hand-built with the QVIST Classic DUO hub system, this limited-edition wheel system is paired with race-proven, aero-optimized rims designed for riders who seek the pinnacle of performance and design. QVIST's DUO patent pending hub system. This system utilises the high durability of ratchet drive and doubles the speed of engagement by offsetting two 60 tooth ratchet rings that work together. Resulting in an industry leading 3°-degree engagement angle. A 24/28 spoke front/rear wheel build for instant acceleration and adventure-ready reliability.

Full Specs _

Rims
Wind tunnel tested, aerodynamically optimized for 40-45mm tires Mixed rim profiles with Limitless Width technology for Aero optimization: - Front rim dimensions: 40mm deep | 36mm external width | 27mm internal width - Rear Rim dimensions: 41mm deep | 35mm external width | 26mm internal width - ETRTO compliant for use with 35c tires and wider H_lock tire security channel Pinch flat protection with 4.5mm bead thickness Unidirectional T24/30 carbon fiber with 3K weave re-enforced spoke holes Hookless TSS profile for optimized weight and strength Reflective graphics with matte clear coat
  • Wind tunnel tested, aerodynamically optimized for 40-45mm tires
  • Mixed rim profiles with Limitless Width technology for Aero optimization:
    - Front rim dimensions: 40mm deep | 36mm external width | 27mm internal width
    - Rear Rim dimensions: 41mm deep | 35mm external width | 26mm internal width
    - ETRTO compliant for use with 35c tires and wider
  • H_lock tire security channel
  • Pinch flat protection with 4.5mm bead thickness
  • Unidirectional T24/30 carbon fiber with 3K weave re-enforced spoke holes
  • Hookless TSS profile for optimized weight and strength
  • Reflective graphics with matte clear coat
Front Hub
QVIST Classic Front Hub  7075 aluminium alloy hubshell    Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here Manufactured in-house at QVIST's machine shop in Germany
  • QVIST Classic Front Hub
  • 7075 aluminium alloy hubshell
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Manufactured in-house at QVIST's machine shop in Germany
Rear Hub
QVIST Classic Rear Duo Hub   Feature Qvist’s patent-pending DOUBLE RATCHET SYSTEM with 120 points of engagement An engagement angle of 3°  7075 aluminium alloy hubshell and freehub   17mm axle with large steel bearings  Hard anodized freehub to make the aluminium surface more robust and wear-resistant  Manufactured in-house at QVIST's machine shop in Germany  Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here No special tools are required for disassembly, maintenance and reassembly
  • QVIST Classic Rear Duo Hub
  • Feature Qvist’s patent-pending DOUBLE RATCHET SYSTEM with 120 points of engagement
  • An engagement angle of 3°
  • 7075 aluminium alloy hubshell and freehub
  • 17mm axle with large steel bearings
  • Hard anodized freehub to make the aluminium surface more robust and wear-resistant
  • Manufactured in-house at QVIST's machine shop in Germany
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • No special tools are required for disassembly, maintenance and reassembly
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning  16mm length with washer for a strong connection to the spoke added durability  14 gauge  Black anodized finish
  • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning
  • 16mm length with washer for a strong connection to the spoke added durability
  • 14 gauge
  • Black anodized finish
Spokes
Pillar Wing 20 with Aerofoil profile to minimise drag  24 front and 28 rear interlaced spokes in a 2 cross lacing pattern. To balance durability with compliance Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2  J-bend for durability and ease of replacement  Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden  Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area  Black stainless treatment
  • Pillar Wing 20 with Aerofoil profile to minimise drag
  • 24 front and 28 rear interlaced spokes in a 2 cross lacing pattern. To balance durability with compliance
  • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2
  • J-bend for durability and ease of replacement
  • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
  • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area
  • Black stainless treatment
Bearings
NTN bearings, manufactured in Japan and Taiwan  Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather   Sealed cartridge replaceable units   Dual full-contact seals
  • NTN bearings, manufactured in Japan and Taiwan
  • Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather 
  • Sealed cartridge replaceable units 
  • Dual full-contact seals
Tires Info
HUNT recommends a 40-45mm tire for best performance, tire widths between 35mm and 60mm are also safe to use. You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower. Only use tires suitable for hookless (TSS) rims. If unsure, please contact the tire manufacturer. Leading brands, including Schwalbe, Continental and Vittoria, have many tires suitable for hookless TSS rims.  Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post here about this. Tubeless-ready for lower weight and rolling resistance.
  • HUNT recommends a 40-45mm tire for best performance, tire widths between 35mm and 60mm are also safe to use.
  • You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
  • Only use tires suitable for hookless (TSS) rims. If unsure, please contact the tire manufacturer. Leading brands, including Schwalbe, Continental and Vittoria, have many tires suitable for hookless TSS rims.
  • Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post here about this.
  • Tubeless-ready for lower weight and rolling resistance.
Axle Sizes
These wheels are available with only the disc brake Road & Gravel bike axle adapter sizes listed below. For additional axle sizes, please contact QVIST.   Front: 12x100mm Thru-Axle  Rear: 12x142mm Thru-Axle

These wheels are available with only the disc brake Road & Gravel bike axle adapter sizes listed below. For additional axle sizes, please contact QVIST.

  • Front: 12x100mm Thru-Axle
  • Rear: 12x142mm Thru-Axle

HIGH SPECIFICATION COMPONENTS _

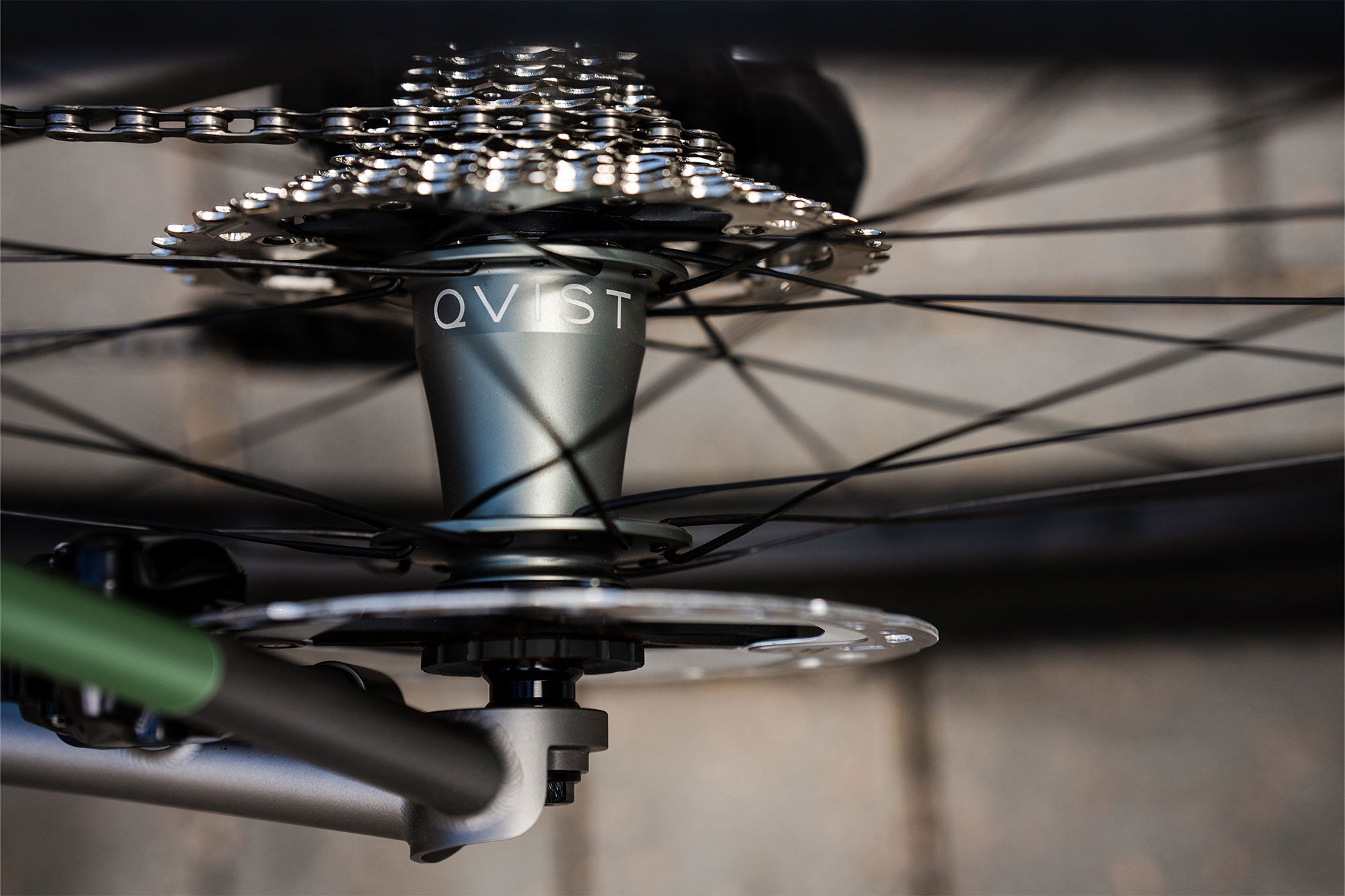

QVIST Duo Hub

QVIST’s Double Ratchet System features their patent-pending with 120 points of engagement (60 of which are engaged on alternate ratchets simultaneously for high durability) and their unique and rich stereo freehub sound. QVIST’s is the fastest engaging ratchet hubset that we know of. HUNT and QVIST have teamed up to offer a unique colourway for this collaboration in a stunning Dark Graphite. This colour is exclusive to the HUNT and QVIST partnership available with these wheels only.

Limitless Rim Profile

HUNT-patented Limitless Width Aero Technology enables us to build a rim that possesses wide, blunt dimensions and class-leading aerodynamic characteristics, whilst maintaining a weight that won’t detract from the all-round performance of the wheelset.

Aerodynamically Optimized

Aerodynamically optimized to be the ultimate all-round gravel racing wheelset for 40 and 45mm+ tires. Aero width advantage without a weight penalty. The wide Limitless rims enhance 50mm+ tire aerodynamics too.

German Engineering/Machining

QVIST are based in the heart of Europe – near our facility in Dresden, Germany. They believe in local manufacturing and craftsmanship. That's why they try to manufacture as many parts as possible in-house, in Germany and in Europe.

Spokes

After testing multiple spoke types (including analysis against competitor spokes), we found that the aerofoil profile of Pillar's Wing spokes offers even further aerodynamic advantages over flat/bladed options.

Hand-Built in Europe

Each wheelset has been hand-built at our facility in Dresden, Germany by our expert wheel builders. Delivered directly to riders worldwide and supported by our passionate Rider Experience team in the US, UK and Germany.

What's in the box _

  • QVIST Bottle.
  • Hunt Black Shield tubeless tape fitted to wheels.
  • Cassette spacer for 8/9/10 speed and XDR-XD compatibility.
  • 60mm Tubeless Valves.
  • Centrelock rings for mounting discs.
  • Spare of each spoke plus nipples.
  • Quality control card signed by your wheel builder.

WARRANTY_

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners. Read all about it here.

A full 3 years from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

Qvist hubs are supplied with subject to the statutory warranty of 24 months, from the date purchased.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 286 lb (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 211 lb then an experienced bike mechanic should check the wheel regularly.
