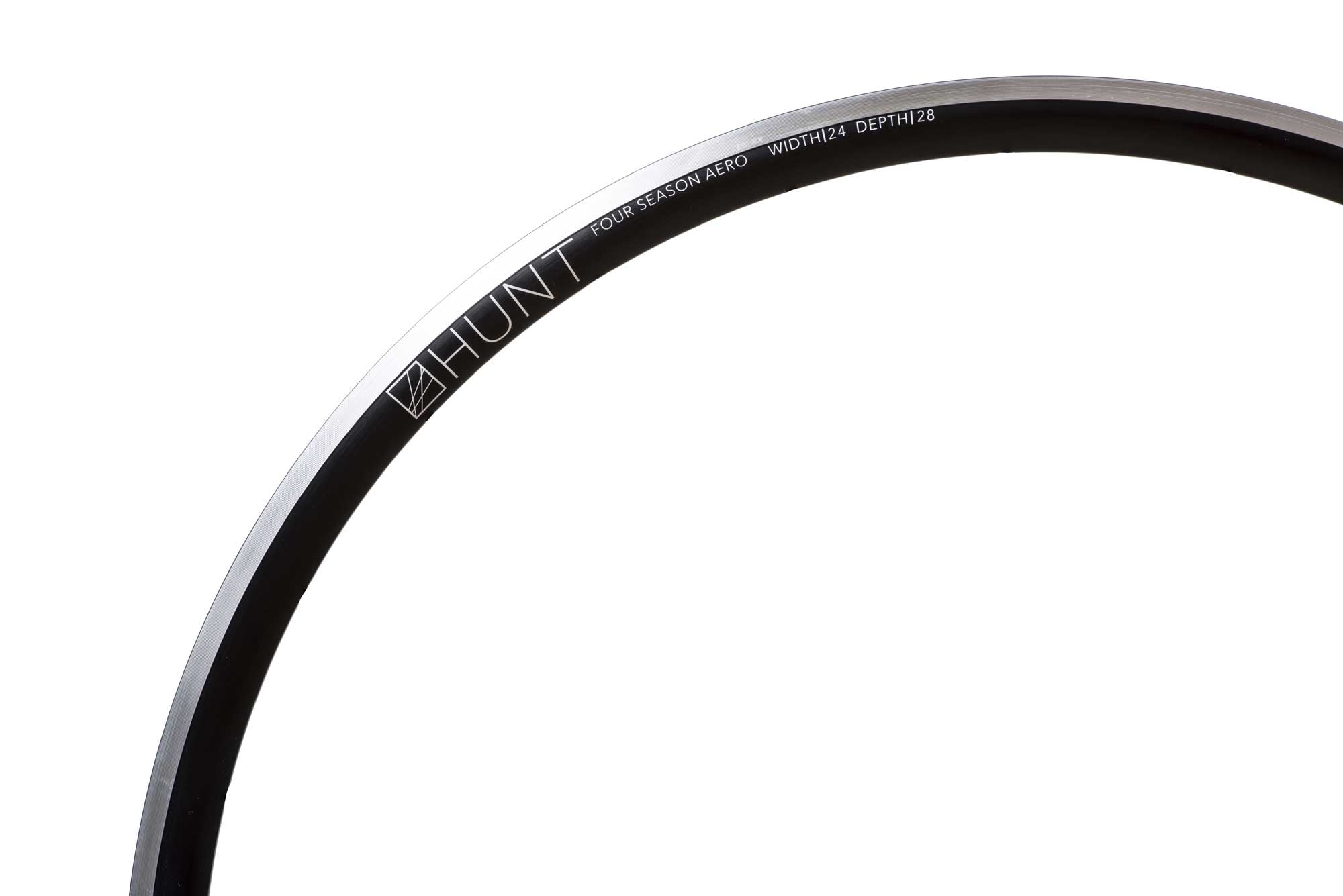

HUNT 4 Season Aero Rim

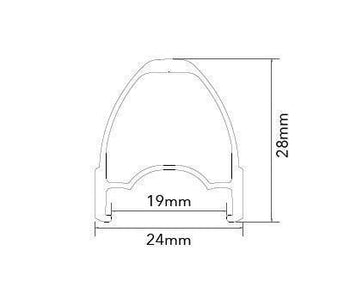

28 DEEP | 24 WIDE Ext | 19 Wide Int | 485G
The ‘Hunt’ for a lightweight, wide, highly durable year-round aero road rim.
28 DEEP | 24 WIDE Ext | 19 Wide Int | 485G
High-performance technology that will deliver you to the finish every time, especially those all-important rain-soaked signpost finishes with your mates on a long training ride. A strong and lightweight 6061-T6 heat-treated sleeved rim features a semi-aero rounded profile 28mm deep and wide at 24mm (19mm internal) for a great tire profile with wider 25-45mm tires, giving excellent grip and lower rolling resistance.
At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option, but of course, all our tubeless-ready rims are also designed to work perfectly with clincher tires and inner tubes.
H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tires. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures or riding off-road.
Detailed Specifications
Rim
- Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Tubeless rim tape offered separately.
- H-lock bead-seat up-kicks for easy and secure tubeless installation
- 6061-T6 heat-treated aluminum alloy.
- 24mm outer and 19mm inner width ideal for 23-45mm tire widths
- 28mm deep rounded aero section
- Precision machined rim brake track
- Matt black anodized finish with laser-etched graphics for low weight with excellent durability.
- Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. 100 psi is more than enough for any rider on road. Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
- ERD 589mm
- Lacing:
- Front - Radial
- Rear - Cross 2
- Recommended spoke tension:
- Front - 105-120 kgf
- Rear - 110-125 kgf
The ‘Hunt’ for a lightweight, wide, highly durable year-round aero road rim.
28 DEEP | 24 WIDE Ext | 19 Wide Int | 485G
High-performance technology that will deliver you to the finish every time, especially those all-important rain-soaked signpost finishes with your mates on a long training ride. A strong and lightweight 6061-T6 heat-treated sleeved rim features a semi-aero rounded profile 28mm deep and wide at 24mm (19mm internal) for a great tire profile with wider 25-45mm tires, giving excellent grip and lower rolling resistance.
At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option, but of course, all our tubeless-ready rims are also designed to work perfectly with clincher tires and inner tubes.
H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tires. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures or riding off-road.
Detailed Specifications
Rim
- Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Tubeless rim tape offered separately.
- H-lock bead-seat up-kicks for easy and secure tubeless installation
- 6061-T6 heat-treated aluminum alloy.
- 24mm outer and 19mm inner width ideal for 23-45mm tire widths
- 28mm deep rounded aero section
- Precision machined rim brake track
- Matt black anodized finish with laser-etched graphics for low weight with excellent durability.
- Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. 100 psi is more than enough for any rider on road. Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
- ERD 589mm
- Lacing:
- Front - Radial
- Rear - Cross 2
- Recommended spoke tension:
- Front - 105-120 kgf
- Rear - 110-125 kgf
