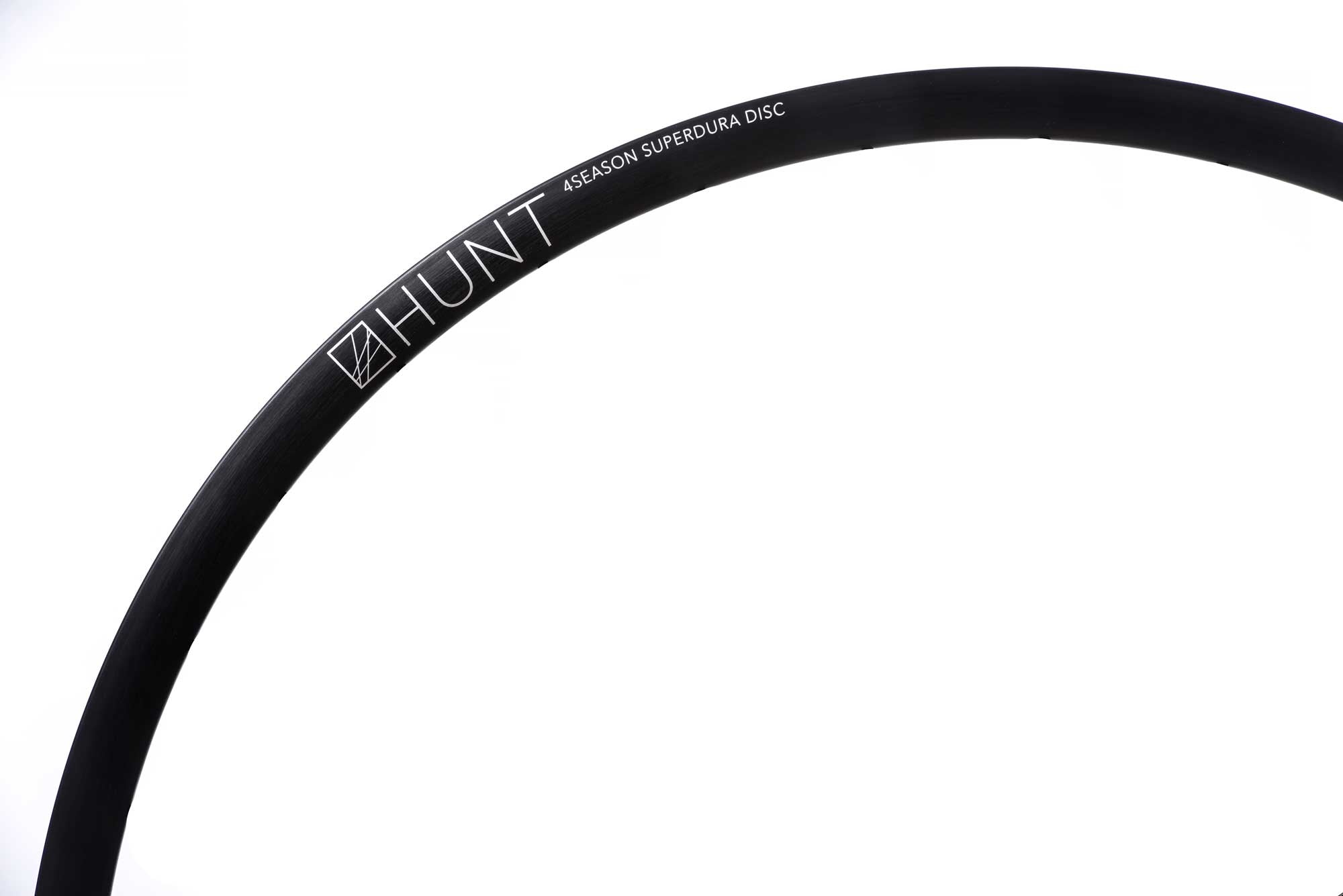

Hunt 4 Season SuperDura Disc Rim
24 DEEP | 25 WIDE Ext | 20 Wide Int | 430G
Fit wide tires, go ride where you want, enjoy the freedom and high spoke count durability.
24 DEEP | 25 WIDE Ext | 20 Wide Int | 430G
Thanks to disc brakes the line between road bikes and cross bikes has been well and truly blurred. Many of us now rightly see bikes as our keys to freedom; the freedom to roam and find undiscovered routes and just have a blast. We want to go fast on-road, but often the routes we want to ride also lead off-road. The SuperDura Dynamo wheelset is designed for all of us. The SuperDura Dynamo Disc is now available as a rim only.
High-performance technology that will deliver you to the finish every time. A strong and lightweight 6061-T6 heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is true disc specific which allows higher-strength to weight as no reinforcement is required for a braking surface, it also looks stunning. The rim dimensions are extra wide at 25mm (20mm internal) which creates a great tire profile with wider 25-45mm tires, giving excellent grip and lower rolling resistance.
Detailed Specifications
Rim
- Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Tubeless rim tape offered separately.
- 6061-T6 heat-treated aluminum alloy.
- 32 hole
- Asymmetric to balance spoke tensions
- Disc-specific tubeless-ready profile
- 25mm outer and 20mm inner width ideal for 25-45mm tire widths
- 24mm depth
- Matt black anodized finish with matt white heated decals for excellent durability
- Maximum tire pressure for this rim is 100psi when used with 25-28mm tyres. 100 psi is more than enough for any rider on road. Maximum tire pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. The maximum pressure of your tire may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tire. Please do not exceed the maximum pressure stated on your tire. Suitable for tires from 23mm up to 50mm wide.
- ERD 596mm
- The spoke holes on these rims are offset by 3mm.
- Lacing:
- Front - Cross 3
- Rear - Cross 3
- Recommended spoke tension:
- Front/Rear - 105-120kgf
